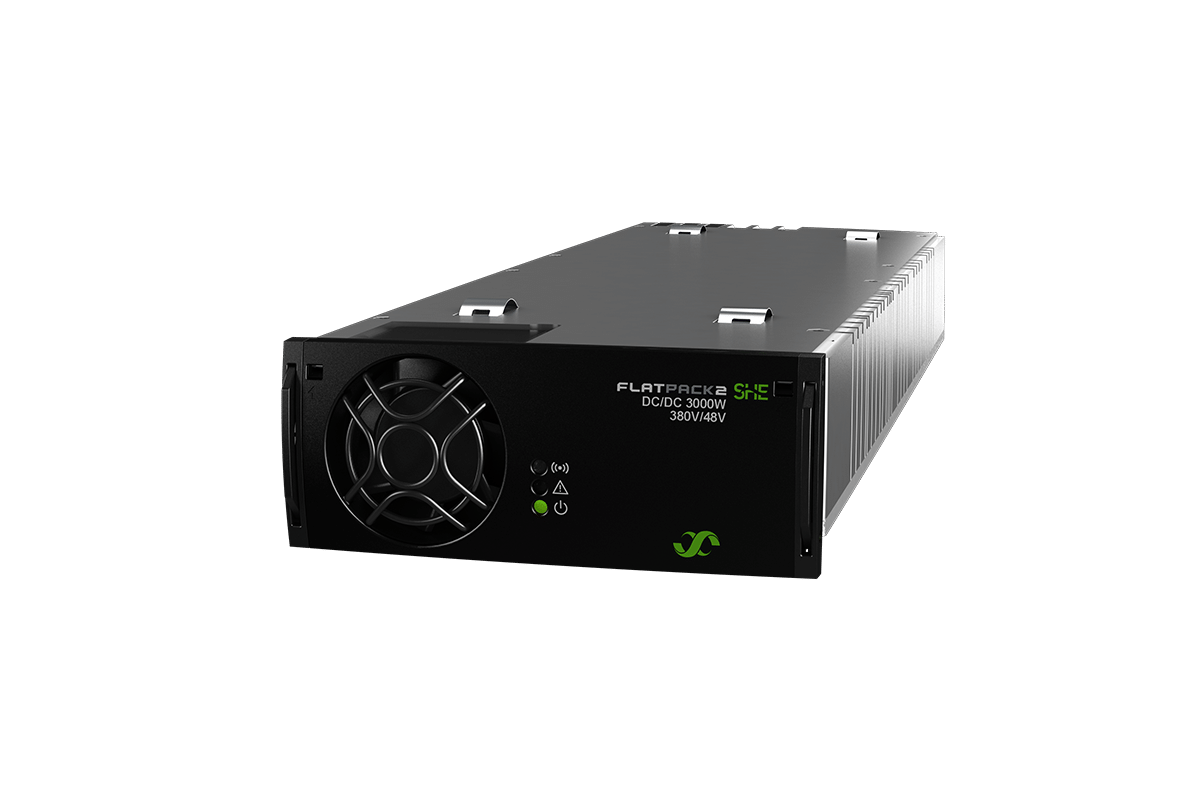

The Flatpack2 DC/DC 380V/48V 3000W SHE converter enables an efficient end-to-end DC power solution for data centers. It converts a 380 VDC bus down to 54 VDC at 98.2% efficiency, making a central 380 VDC UPS a competitive option for more data centers while keeping the reliability, modularity and redundancy of DC power.
Key Features
- Super high efficiency: up to 98.2%
- High power density: 33 W/inch³
- 3000 W at 50–55 VDC, 60 A
- Wide 260–400 VDC input
- Modular: build as your load grows
- OR-ing protection on output
- MTBF 510,000 hours
- Patented HE technology
Technical Specifications
| Input | |
|---|---|
| Voltage DC (operating range) | 260 – 400 VDC |
| Electrical | |
| MTBF | 510000 h |
| DC Output | |
| Max Power | 3000 W |
| Voltage (adjustable range) | 50 – 55 VDC |
| Current (maximum) | 60 ADC |
| Max Voltage | 55 VDC |
| Others | |
| Cooling | Single fan |
| Efficiency | 98.2% |
| Operating Temperature | −40 to 75°C |
| Dimensions | |
| Dimensions (W x H x D) | 109 x 41.5 x 327 mm [4.29 x 1.63 x 12.78 inch] |
| Weight | 1.95 kg |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
380 VDC data center architectures, central DC UPS designs and conversion of 380 VDC distribution to 48 VDC at the rack.
Related Eltek Products
- Flatpack2 DC/DC 380V/54V Power System – 380 VDC to 54 VDC, up to 108 kW
- 380 Vdc Power Solutions – scalable 380 VDC systems up to 864 kW
- Flatpack S DC/DC Converter 380V/54V, 750W HE – compact 750 W, 380 VDC to 54 VDC
Browse the full DC/DC converter range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack2 DC/DC Converter 380V/48V, 3000W SHE in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack2 DC/DC Converter 380V/48V, 3000W SHE and our engineers will confirm the right configuration for your site.
