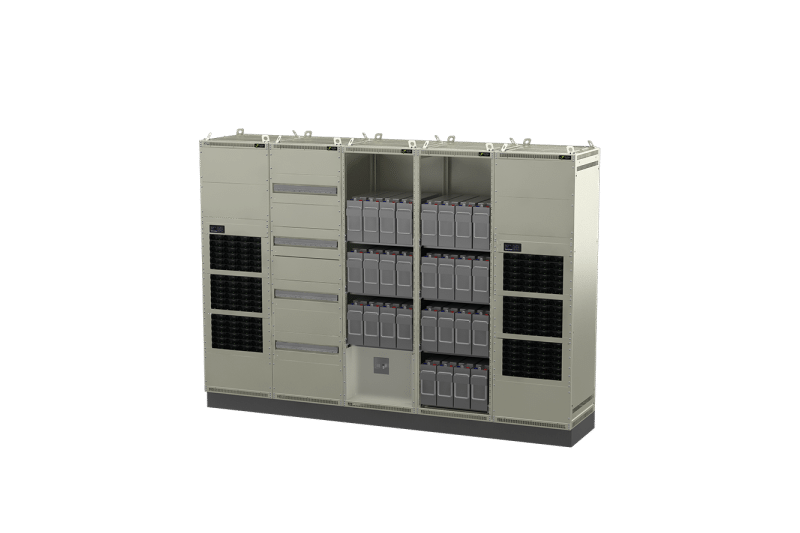

Eltek 380 Vdc power solutions help operators meet rising power density, mixed load types and the need for flexible site design. Systems are built from Flatpack2 HE power converter building blocks with Smartpack2 control, scaling up to 864 kW. Distributing at 380 VDC cuts operating current by a factor of seven compared with 48 VDC, reducing copper per kW and allowing batteries and loads to sit hundreds of meters from the power system.
Key Features
- 7x lower current than 48 VDC: less cabling to the load
- Flexible site design: batteries and loads can be remote from the power system
- Modular hot-swappable power converters, minimized MTTR
- Build-as-you-grow scalability, up to 864 kW
- Power 48 VDC or AC loads where needed
- Upgrade existing sites without downtime
- Simple integration of renewable energy sources
- High Efficiency (HE) conversion
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 480 VAC |
| Mains Configuration | 230/400 VAC 3 phase (Y); 230 VAC 3 phase (Δ); 230 VAC Single phase; 277/480V |
| DC Output | |
| Current (maximum) | 2600 ADC |
| Max Voltage | 400 VDC |
| Max Power | 864 kW |
| Battery Distribution | |
| Breaker Positions Up to | 16 |
| Breaker Rating Up to | 600 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 18 |
| Breaker Rating Up to | 2500 A |
| LVLD | No |
| Others | |
| Operating Temperature | −20 to 55°C |
| Mounting Type | Floor |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 2160 x 600 mm [23.7 x 85 x 23.7 inch] |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Data centers, telecom core and central office upgrades, and campuses that distribute power over long cable runs.
Related Eltek Products
- Flatpack2 DC/DC 380V/54V Power System – 380 VDC to 54 VDC, up to 108 kW
- Flatpack2 DC/DC Converter 380V/48V, 3000W SHE – 380 VDC to 54 VDC at 98.2% efficiency
- Flatpack2 380V/3000W HE rectifier – 3000W module for 380 VDC distribution
Browse the full large and converged power system range or see all Delta Eltek DC power systems in Egypt.
Buy 380 Vdc Power Solutions in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the 380 Vdc Power Solutions and our engineers will confirm the right configuration for your site.
