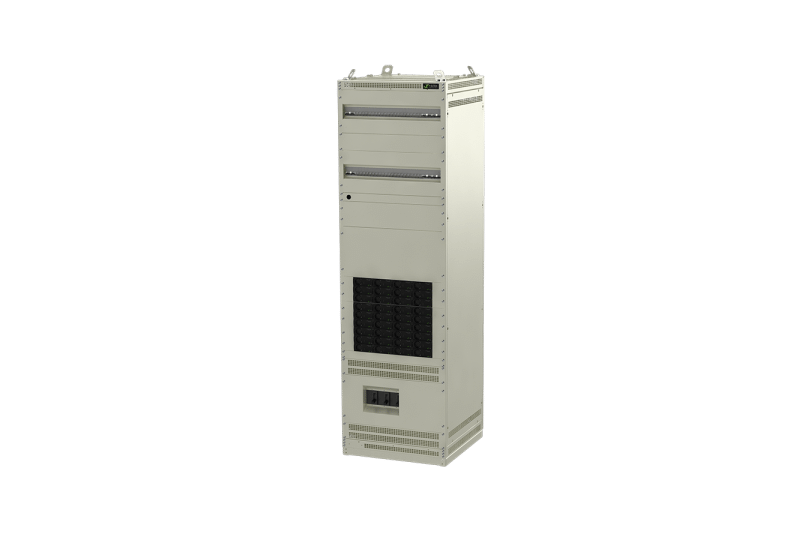

The Flatpack2 DC/DC 380V/54V power system steps a 380 VDC bus down to a regulated 54 VDC for telecom and IT loads. Built from Flatpack2 DC/DC 380V/48V 3000W SHE converter modules at 98.2% module efficiency and managed by a Smartpack2 controller, a single 2 m cabinet delivers up to 108 kW and 2160 A. It suits data centers using 380 VDC as an alternative to a traditional UPS, and central power plants for telecom site expansions.
Key Features
- Converts 380 VDC to a regulated 54 VDC (adjustable 50–55 VDC)
- Super High Efficiency converter modules: 98.2% module efficiency
- Up to 108 kW and 2160 A per cabinet
- Modular: add converters as the load grows
- Hot-pluggable modules
- Smartpack2 control and monitoring
- Input protection and up to 30 load breakers
Technical Specifications
| Input | |
|---|---|
| Current (maximum) | 442.8 ADC |
| Max Input AC Voltage | 400 VAC |
| DC Output | |
| Current (maximum) | 2160 ADC |
| Max Voltage | 55 VDC |
| Max Power | 108 kW |
| DC Load Distribution | |
| Number of Breakers | 30 |
| Breaker Rating Up to | 125 A |
| Others | |
| Operating Temperature | −20 to 45°C |
| Mounting Type | Floor |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 2000 x 600 mm [23.62 x 78.74 x 23.62 inch] |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
380 VDC data center architectures and central telecom power plants that distribute at 380 VDC and need 48 VDC at the load.
Related Eltek Products
- Flatpack2 DC/DC Converter 380V/48V, 3000W SHE – 380 VDC to 54 VDC at 98.2% efficiency
- 380 Vdc Power Solutions – scalable 380 VDC systems up to 864 kW
- Flatpack2 380V/3000W HE rectifier – 3000W module for 380 VDC distribution
