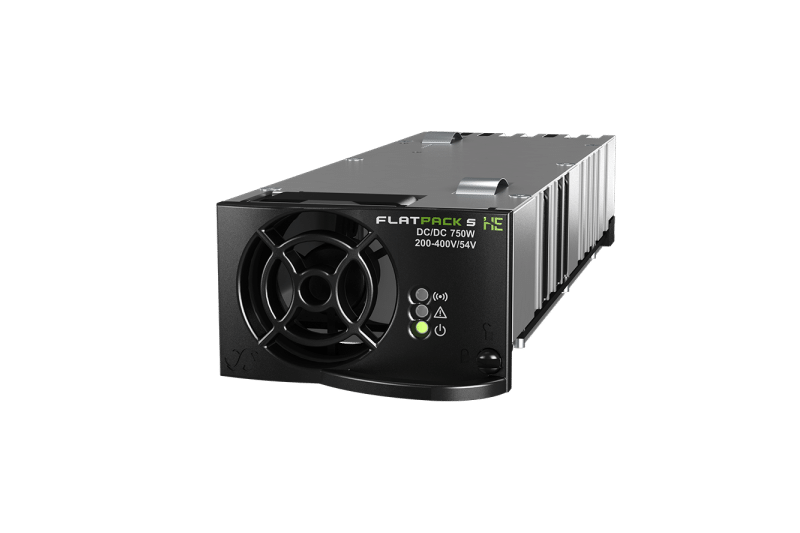

The Flatpack S DC/DC 380V/54V converter brings telecom specifications, high efficiency, OR-ing protection and 750 W into a small 217 mm deep module. It converts a 200–400 VDC feed to a fixed 54 VDC at over 96% efficiency, improving the business case for remote DC power feeding, and its small size suits integration into custom server racks.
Key Features
- 200–400 VDC input
- 750 W at fixed 54 VDC, 13.8 A
- Efficiency above 96%
- Small: 72 x 40 x 217 mm, 850 g
- Power density 19.5 W/inch³
- OR-ing protection on output, hot pluggable
- Voltage and power keying
Technical Specifications
| Input | |
|---|---|
| Voltage DC (operating range) | 200 – 400 VDC |
| Current (maximum) | 2.9 ADC |
| DC Output | |
| Max Power | 750 W |
| Voltage (fixed) | 54 VDC |
| Current (maximum) | 13.8 A (@VOUT < 54 VDC) |
| Others | |
| Efficiency | > 96% |
| Operating Temperature | −40 to 85°C |
| Storage Temperature | −40 to 85°C |
| Dimensions | |
| Dimensions (W x H x D) | 72 x 40 x 217 mm [2.84 x 1.57 x 8.54 inch] |
| Weight | 850 g |
| Certifications | |
| Safety | UL 60950-1:2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Remote sites fed with 380 VDC from a central office, small cells and custom server racks that need 54 VDC.
