Name: Rectiverter 48V
Brand: Delta Eltek

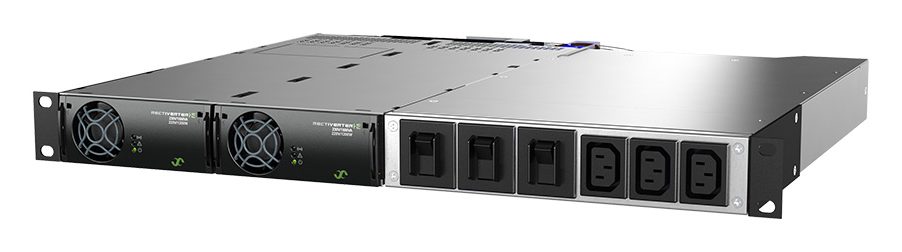

Rectiverter 48V

Most backup power designs stack a rectifier, an inverter, and a static transfer switch into three separate boxes — three points of failure and three footprints to cool. The Delta Eltek Rectiverter 48V does all three in one hot-pluggable unit: it charges the 48V battery, feeds 230/115 VAC and DC loads at the same time, and switches to stored battery energy the instant mains drops, with no gap in supply to the AC load.

Key Features

Unique 3-in-1 operation: inverter, rectifier, and power-source transfer in one box
Modular, hot-pluggable design — swap a unit without powering down the rack
Up to 96% efficiency in mains mode, 94% in inverter mode
Patented HE technology carried over from the proven Flatpack2 HE rectifier platform
AC & DC port voltage keying prevents mismatched connections during installation
Operating range −40°C to +75°C, MTBF 260,000 hours at 25°C ambient
Global compliance: EN 60950-1, UL 60950-1, UL1778, EN 61000 EMC series, RoHS

Applications

LTE/4G/WiMAX and distributed antenna systems, broadband; SCADA and switch tripping, LV/HV switchgear, transformer and substations; railway and metro signaling and control centers; marine shipboard communications; rural electrification.
