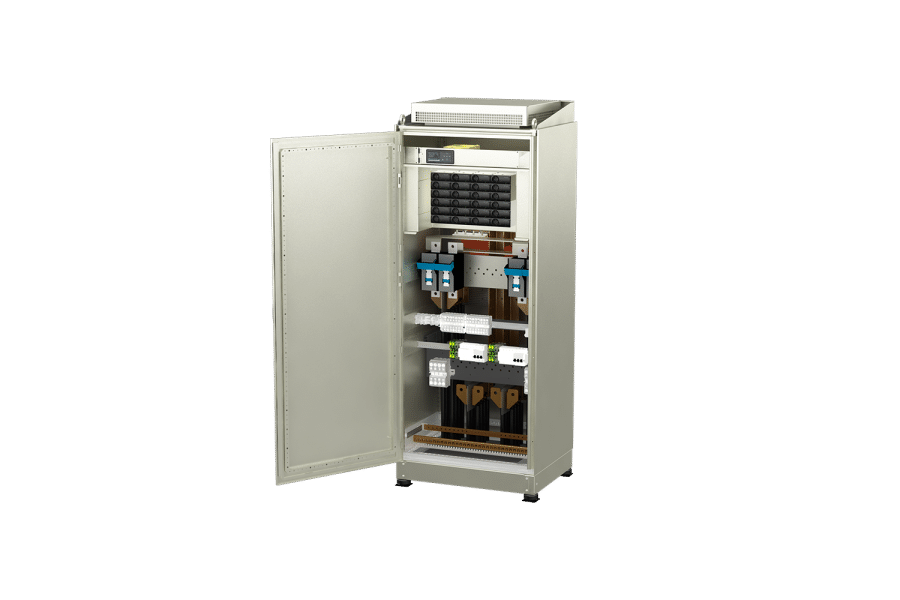

The Flatpack2 24V/48kW DC power system is a high-density 24 VDC cabinet built for marine and offshore installations. Its 6U power rack holds up to 24 hot-swappable Flatpack2 rectifiers, so capacity can start at 4 kW and grow to 48 kW simply by adding modules, all monitored by a Smartpack2 controller. The cabinet offers ingress protection up to IP43 and DNV 2.4 marine certification.
Key Features
- Scalable from 4 kW to 48 kW with up to 24 Flatpack2 rectifiers
- Hot-swappable rectifier modules
- Up to 2000 A DC output at 21.7–28.8 VDC
- Smartpack2 digital controller
- Ingress protection up to IP43
- DNV 2.4 marine certification (ABS approval pending per Delta)
Technical Specifications
| Input | |
|---|---|
| Current (maximum) | 2000 ADC |
| Voltage AC (operating range) | 85 – 300 VAC |
| Voltage DC (operating range) | 85 – 300 VDC |
| Max Input AC Voltage | 300 VAC |
| Max Input DC Voltage | 300 VDC |
| Mains Configuration | 230/400 VAC 3 phase (Y); 230 VAC 3 phase (Δ) |
| DC Output | |
| Voltage (adjustable range) | 21.7 – 28.8 VDC |
| Current (maximum) | 2000 ADC |
| Max Voltage | 28.8 VDC |
| Max Power | 48 kW |
| Battery Distribution | |
| Breaker Positions Up to | 2 |
| Breaker Rating Up to | 1200 A |
| DC Load Distribution | |
| Number of Breakers | 2 |
| Breaker Rating Up to | 1200 A |
| LVLD | No |
| Others | |
| Efficiency | 91% |
| Operating Temperature | −40 to 75°C |
| Storage Temperature | −40 to 85°C |
| Dimensions | |
| Dimensions (W x H x D) | 800 x 1800 x 600 mm [34.5 x 70.9 x 23.6 inch] |
| Weight | 341 kg |
| Design Standards | |
| Ingress Protection (IP) | 43 |
| Certifications | |
| Marine | DNV 2.4 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
24 VDC power for ships, offshore platforms and other marine installations that need an expandable, easily serviced supply in minimal space.
