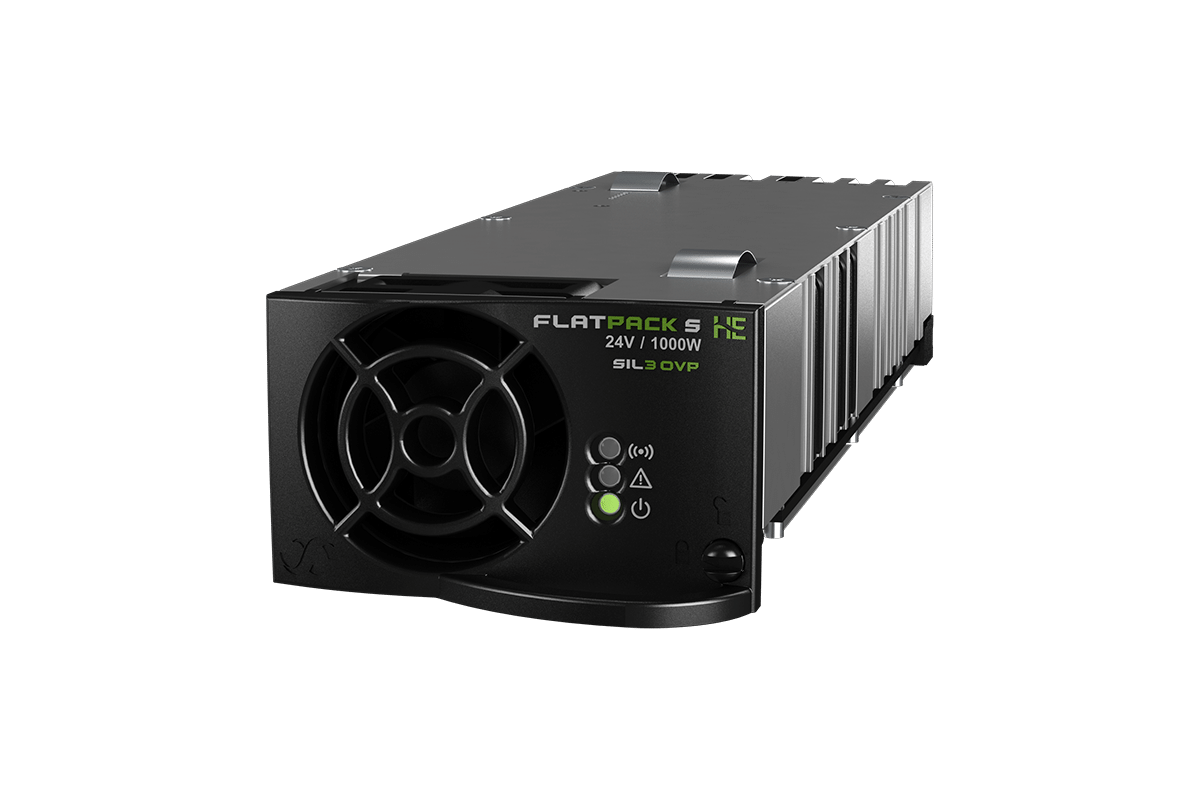

The Flatpack S 24V/1000W SIL3 OVP rectifier is designed for Safety and Automation Systems (SAS) in offshore and process industries that require SIL-rated overvoltage protection on the DC output. It combines this SIL3 protection with high power density, a wide temperature range and Flatpack S reliability in a compact housing. In a 3U rack with the Smartpack S controller, Flatpack S rectifiers cover 2 to 8 kW using less than 18 litres.
Key Features
- SIL3-rated overvoltage protection on the output
- Small and short Flatpack S housing
- Power dense: 26 W/inch³
- High efficiency: 92.5%
- OR-ing protection on output
- Hot pluggable
- Voltage keying
Technical Specifications
| Input voltage (AC operating range) | 85 – 305 VAC |
|---|---|
| Input voltage (DC operating range) | 85 – 305 VDC |
| Nominal output voltage | 24 VDC |
| Output power (max.) | 1000 W |
| Output current (max.) | 28 ADC |
| Output overvoltage protection | SIL3 rated |
| Efficiency | 92.5% |
| Cooling | Single fan |
| Operating temperature | −40 to +85°C |
| Dimensions (W x H x D) | 72 x 41.5 x 217 mm (2.83 x 1.63 x 8.54 in) |
| Weight | 850 g |
| Ingress protection | IP20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
24V DC supplies for safety-instrumented and automation systems on offshore platforms, FPSOs, refineries and process plants, where the DC output must be protected against overvoltage to SIL3.
