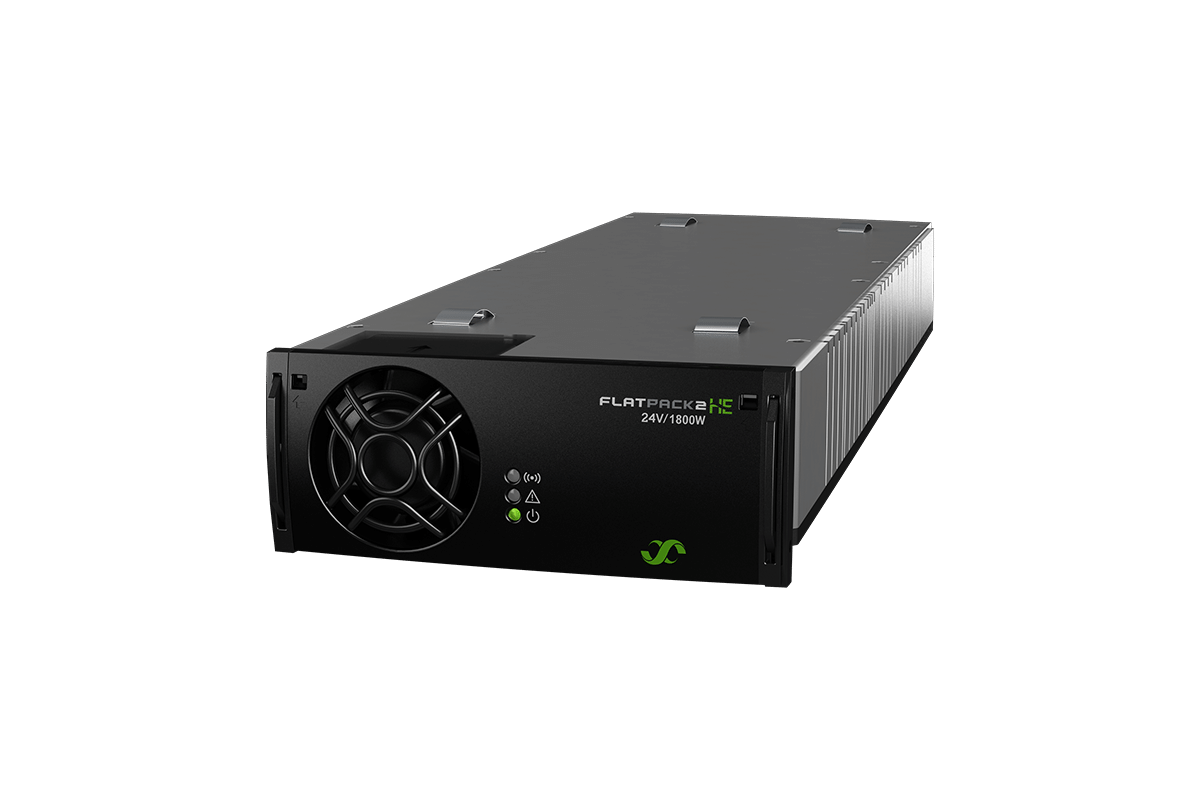

The Flatpack2 24V/1800W HE rectifier is the original high-efficiency Flatpack2 module for 24V DC systems. It delivers 1800W and up to 75A from a wide 85–300 VAC or VDC input, making it a cost-efficient rectifier for 24V lead-acid battery systems. Its wide temperature range and Flatpack2 format let it scale from a single 1.8 kW module to multi-cabinet installations.
Key Features
- Proven reliability
- High efficiency: 95%
- Power dense: 22 W/inch³
- Wide operating temperature: −40°C to +75°C
- Accepts AC or DC input (85–300 V)
- Scales from 1.8 kW to multi-cabinet installations
- Global compliance (CE, UL)
Technical Specifications
| Input voltage range | 85 – 300 VAC / 85 – 300 VDC |
|---|---|
| Input frequency | 45 – 66 Hz |
| Input current (max.) | 11.25 A (at nominal input, full load) |
| Power factor | 0.99 (at 50–100% load) |
| Default output voltage | 26.75 VDC |
| Output voltage range | 21.75 – 28.8 VDC |
| Output power (nominal input) | 1800 W |
| Output current (max.) | 75 A (at VOUT ≤ 24 VDC) |
| Efficiency | 95% |
| Operating temperature | −40 to +75°C |
| Storage temperature | −40 to +85°C |
| Dimensions (W x H x D) | 109 x 41.5 x 327 mm (4.29 x 1.63 x 12.78 in) |
| Weight | 1.95 kg |
| Safety | EN/IEC 62368-1, IEC 60950-1, UL 62368-1, CSA C22.2 No. 62368-1 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
24V DC systems with lead-acid batteries: industrial control and automation, switchgear and utility auxiliary supplies, security and transmission equipment.
Related Eltek Products
- Flatpack2 110-125V HE rectifier – industrial 110–125V DC, 2000W or 20A
- Flatpack2 48-60V/2000W HE rectifier – one module for 48V and 60V batteries, including NiCad
- Flatpack S 24V/1000W HE rectifier – compact 24V module for rail and utilities
Browse the full Flatpack2 rectifier range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack2 24V/1800W HE Rectifier in Egypt
KPS supplies, installs and supports Delta Eltek rectifiers and DC power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack2 24V/1800W HE Rectifier and our engineers will confirm the right configuration for your site.
