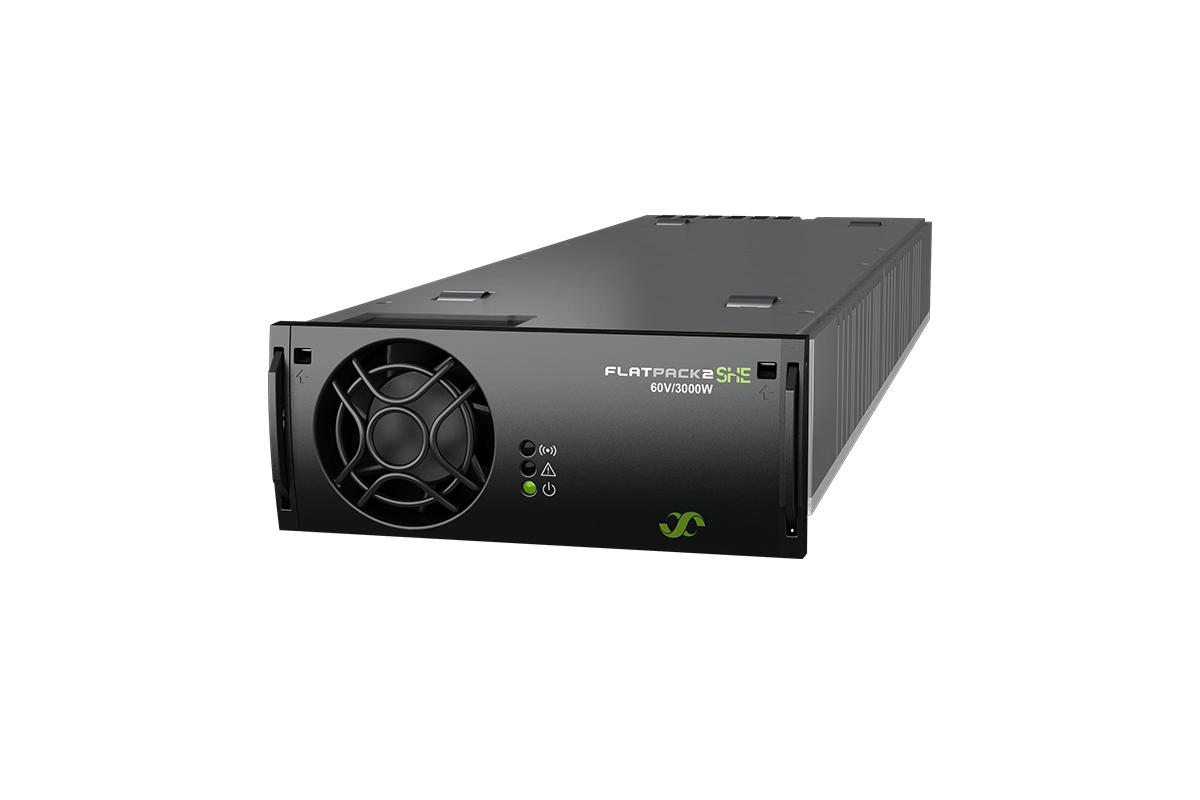

The Flatpack2 60V/3000W SHE rectifier brings Super High Efficiency to 60V DC power systems. It delivers 3000W at up to 97.8% efficiency, which shortens payback against standard HE modules on sites where energy is costly. It is fully compatible with Flatpack2 and Flatpack2 HE systems, so 60V networks can be built or expanded on the same proven platform.
Key Features
- Super high efficiency: up to 97.8%
- High power density: 33 W/inch³
- 3000W output at 54–72 VDC
- Compatible with Flatpack2 and Flatpack2 HE systems
- Hot pluggable
- Global compliance
Technical Specifications
| Input voltage (AC operating range) | 84 – 264 VAC |
|---|---|
| Output power (max.) | 3000 W |
| Output voltage (adjustable) | 54 – 72 VDC |
| Output current (max.) | 50 ADC |
| Max. output voltage | 72 VDC |
| Efficiency | 97.8% |
| Cooling | Single fan |
| Dimensions (W x H x D) | 109 x 41 x 327 mm (4.29 x 1.61 x 12.78 in) |
| Weight | 2.05 kg |
| Ingress protection | IP20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
60V DC telecom and network power systems, including legacy 60V switching equipment, where operators want lower energy losses and less cooling load.
Related Eltek Products
- Flatpack2 48V SHE rectifier – 97.8% efficient 48V modules, 2000W or 3000W
- Flatpack2 48-60V/2000W HE rectifier – one module for 48V and 60V batteries, including NiCad
- Flatpack2 48V HE rectifiers – 2000W and 3000W at up to 96.5% efficiency
Browse the full Flatpack2 rectifier range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack2 60V/3000W SHE Rectifier in Egypt
KPS supplies, installs and supports Delta Eltek rectifiers and DC power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack2 60V/3000W SHE Rectifier and our engineers will confirm the right configuration for your site.
