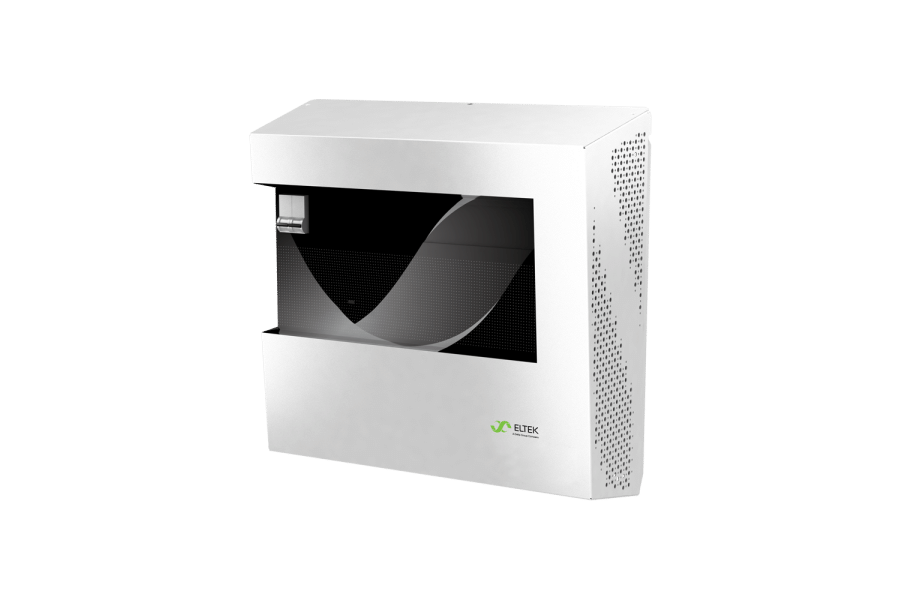

The Micropack Wallbox is a micro DC backup system for industrial and telecom loads from 120 W to 1000 W. Available as 12V/480W, 24V/960W or 48V/1000W, it houses convection-cooled Micropack modules with optional internal backup batteries, and offers either bulk feed or integrated battery and load distribution with LVBD and LVLD.
Key Features
- 12V/480W, 24V/960W or 48V/1000W versions
- Natural convection cooling: silent, no fans
- Optional internal backup batteries
- Bulk feed or integrated distribution: 2 battery and 4 load breakers
- LVBD and LVLD
- Digital controller
- Removable front cover for fast installation
- IP22, CE marked
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 300 VAC |
| Mains Configuration | 230 VAC Single phase |
| DC Output | |
| Voltage (adjustable range) | 12 – 58 VDC |
| Current (maximum) | 40 ADC |
| Max Voltage | 58 VDC |
| Max Power | 1 kW |
| Battery Distribution | |
| Breaker Positions Up to | 2 |
| Breaker Rating Up to | 50 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 4 |
| Breaker Rating Up to | 32 A |
| LVLD | Yes |
| Others | |
| Operating Temperature | −40 to 45°C |
| Dimensions | |
| Dimensions (W x H x D) | 452 x 450 x 200 mm [17.8 x 17.72 x 7.87 inch] |
| Weight | 7 kg |
| Design Standards | |
| Ingress Protection (IP) | 22 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Small telecom and network equipment, industrial control panels, security, SCADA and utility RTUs that need a compact DC supply with battery backup.
Related Eltek Products
- Micropack DIN rail power system – convection-cooled 12V, 24V and 48V modules
- Micropack DC/DC Converter 10-72V/12V, 120W – 12 VDC from 12–60V batteries, DIN rail
- Flatpack S Wallbox Power Supply – wall-mounted 24/36/48V, SMPS 700 retrofit
Browse the full DC power system range or see all Delta Eltek DC power systems in Egypt.
Buy Micropack Wallbox DC Power System in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Micropack Wallbox DC Power System and our engineers will confirm the right configuration for your site.
