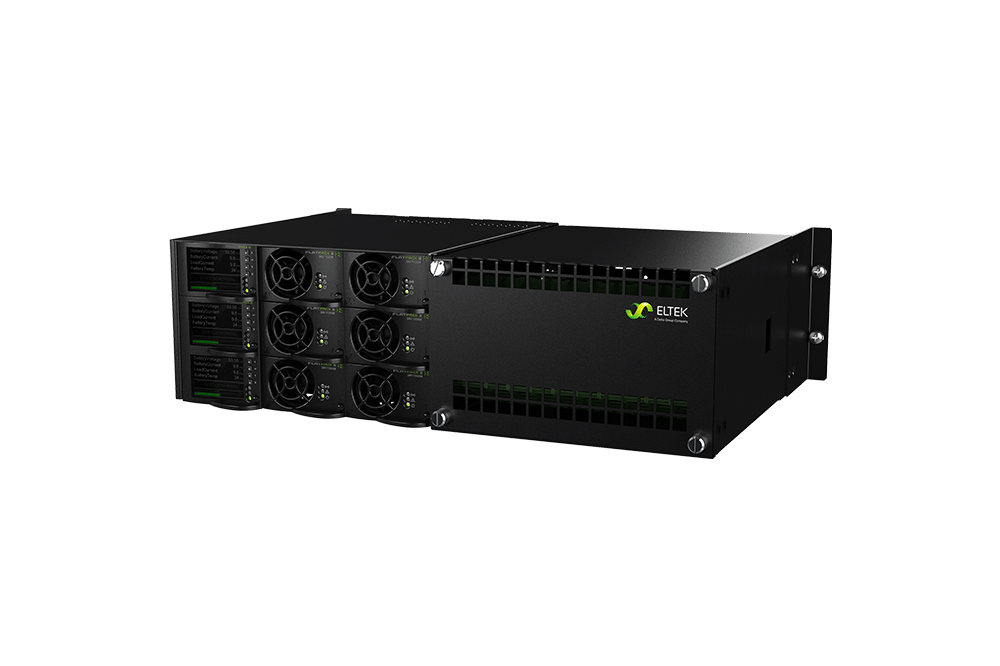

The Flatpack S 24V/3x2kW rack is a 3U building block for industrial 24 VDC applications. It contains three separate DC systems, each with two redundant Flatpack S rectifiers, and two of them can be paralleled for more power or redundancy. Every rectifier has its own AC feed, so each output can be supplied from redundant AC sources. System depth is only 250 mm.
Key Features
- 3 independent 24 VDC systems, each with 2 redundant rectifiers
- Two systems can be paralleled (4 rectifiers) for more power or redundancy
- Separate AC feed per rectifier for redundant AC sources
- Up to 6 kW and 250 A in total
- DC OK relay output per rectifier pair
- Optional Smartpack S controller per pair with display and Ethernet
- 250 mm system depth
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 300 VAC |
| Max Input DC Voltage | 300 VDC |
| Mains Configuration | 230 VAC Single phase |
| DC Output | |
| Current (maximum) | 250 ADC |
| Max Voltage | 24 VDC |
| Max Power | 6 kW |
| Others | |
| Operating Temperature | −40 to 85°C |
| Storage Temperature | −40 to 85°C |
| Dimensions | |
| Dimensions (W x H x D) | 482.6 x 132.5 x 300 mm [19 x 5.22 x 11.81 inch] |
| Weight | 6 kg |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Industrial control and automation, process plants and utility installations that need several independent, redundant 24 VDC supplies.
Related Eltek Products
- Flatpack S 24V 2U 2-Pole Power System – 3 kW, 2-pole 24 VDC in 2U
- Flatpack S 24V/1000W HE rectifier – compact 24V module for rail and utilities
- IBF AC/DC Industrial Bulk Feed Unit – 19-inch 6U bulk feed, 2–16 kW
Browse the full Flatpack S power system range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack S 24V 3x2kW Power Rack in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack S 24V 3x2kW Power Rack and our engineers will confirm the right configuration for your site.
