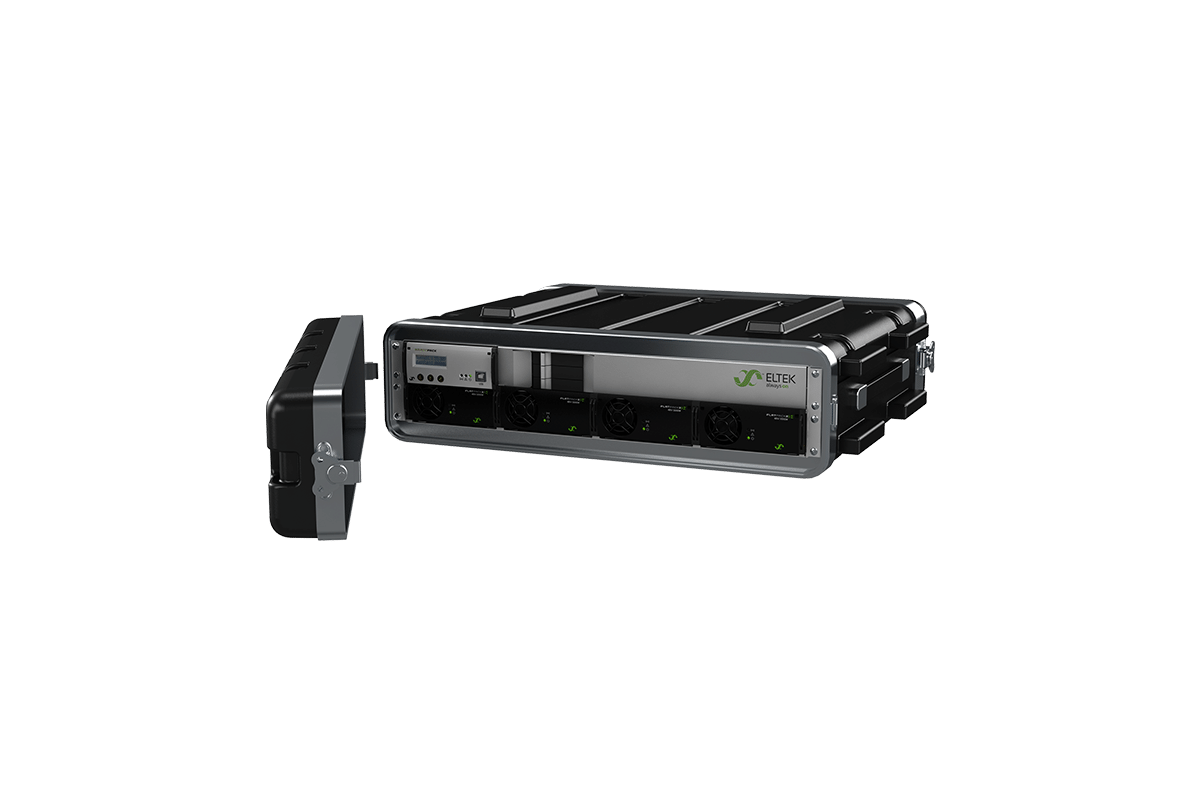

The Flatpack2 portable emergency power unit keeps DC loads running during main DC power failures, system replacements, battery changes or maintenance. Housed in a rugged hard case, it takes up to four Flatpack2 24V, 48V or 60V rectifiers and a Smartpack controller, delivering 2 to 12 kW through a 150 A protected DC output.
Key Features
- Rugged hard case with removable front and back lids
- Configurable with Flatpack2 24V, 48V or 60V rectifiers
- Output power from 2 kW to 12 kW
- Smartpack controller
- Individual AC input feed
- One negative DC output on busbars with lug connections, protected by a 150 A MCB
- Extension alarm card
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 300 VAC |
| Mains Configuration | 230 VAC Single phase; 230 VAC 3 phase (Δ); 230/400 VAC 3 phase (Y) |
| DC Output | |
| Current (maximum) | 250 ADC |
| Max Voltage | 60 VDC |
| Max Power | 12 kW |
| DC Load Distribution | |
| Breaker Positions Up to | 1 |
| Breaker Rating Up to | 150 A |
| Others | |
| Operating Temperature | −40 to 70°C |
| Dimensions | |
| Dimensions (W x H x D) | 530 x 140 x 510 mm [21 x 5.5 x 20.25 inch] |
| Weight | 12 kg |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Service teams maintaining telecom and industrial DC sites, providing temporary power during outages, upgrades, battery replacement and maintenance.
Related Eltek Products
- Flatpack2 2U Integrated Power System – complete 150 A system in 2U
- Flatpack2 48V SHE rectifier – 97.8% efficient 48V rectifier modules
- Flatpack2 48-60V/2000W HE rectifier – one module for 48V and 60V batteries
Browse the full Flatpack2 power system range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack2 Portable Emergency Power Unit in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack2 Portable Emergency Power Unit and our engineers will confirm the right configuration for your site.
