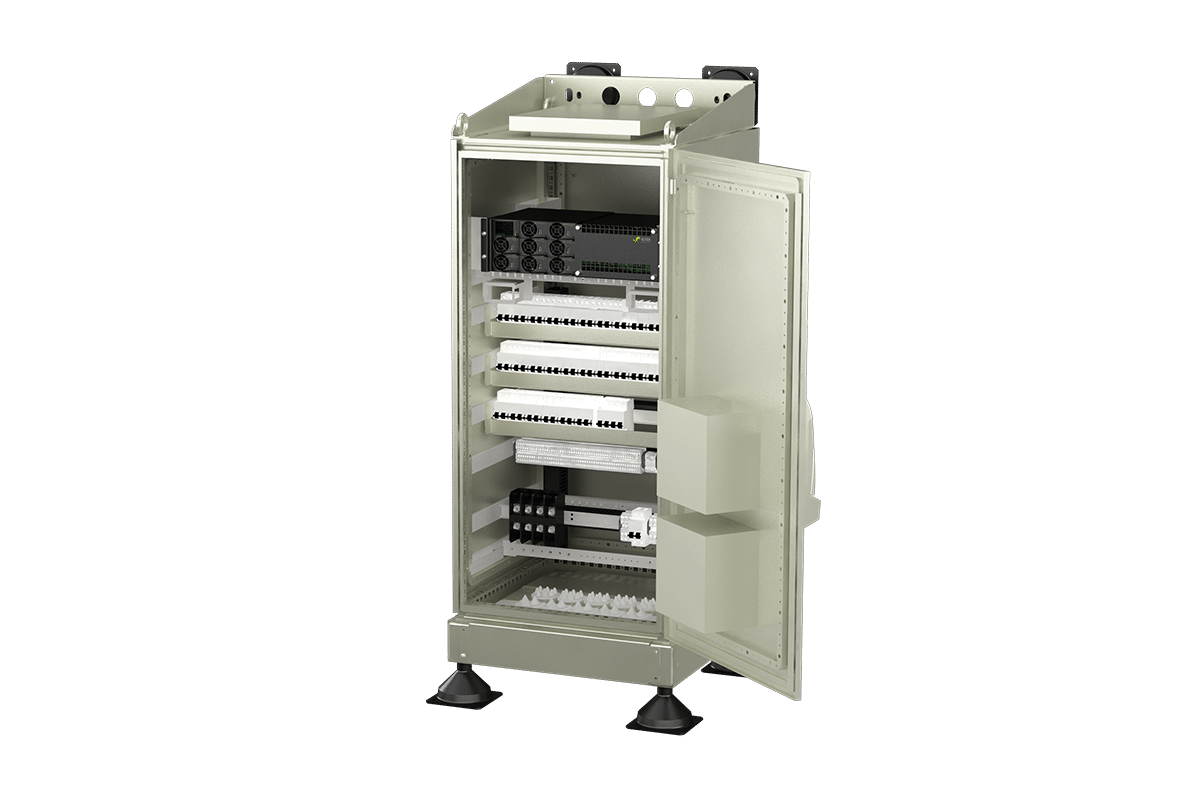

The Flatpack S Marine Power System is a fully modular 8 kW, 24 VDC system for on-board applications that need safe, reliable power. It runs from AC or DC input, works stand-alone or as part of a centralized system, and is offered as an IP44 floor cabinet with up to 28 load breakers or as a compact wall-mount version. The Smartpack S controller provides web access and common earth-fault monitoring.
Key Features
- 8 kW at 24 VDC (adjustable 21.5–28 VDC), 333 A
- AC (85–305 V) or DC (85–300 V) input
- Stand-alone or part of a centralized system
- Smartpack S controller with web interface and earth-fault monitoring
- Floor cabinet with up to 28 load breakers, or wall mount with 5
- IP44 ingress protection
- Modular Flatpack S rectifiers
Technical Specifications
| Specification | Floor cabinet | Wall mount |
|---|---|---|
| Input | ||
| Voltage AC (operating range) | 85 – 305 VAC | |
| Voltage DC (operating range) | 85 – 300 VDC | |
| Max Input AC Voltage | 305 VAC | |
| Max Input DC Voltage | 300 VDC | |
| Mains Configuration | 230 VAC Single phase | |
| DC Output | ||
| Voltage (adjustable range) | 21.5 – 28 VDC | |
| Current (maximum) | 333 ADC | |
| Max Voltage | 28 VDC | |
| Max Power | 8 kW | |
| DC Load Distribution | ||
| Breaker Positions Up to | 28 | 5 |
| Breaker Rating Up to | 16 A | 10 A |
| LVLD | No | |
| Others | ||
| Operating Temperature | −40 to 55°C | |
| Insulation | No | – |
| Mounting Type | Floor | Wall |
| Cooling | – | Convection |
| Dimensions | ||
| Dimensions (W x H x D) | 600 x 1200 x 600 mm [23.62 x 47.24 x 23.62 inch] | 600 x 750 x 350 mm [23.62 x 29.53 x 13.78 inch] |
| Weight | 131 kg | 80 kg |
| Design Standards | ||
| Ingress Protection (IP) | 44 | |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
24 VDC supplies on ships, offshore vessels and platforms for navigation, communication, automation and safety systems.
