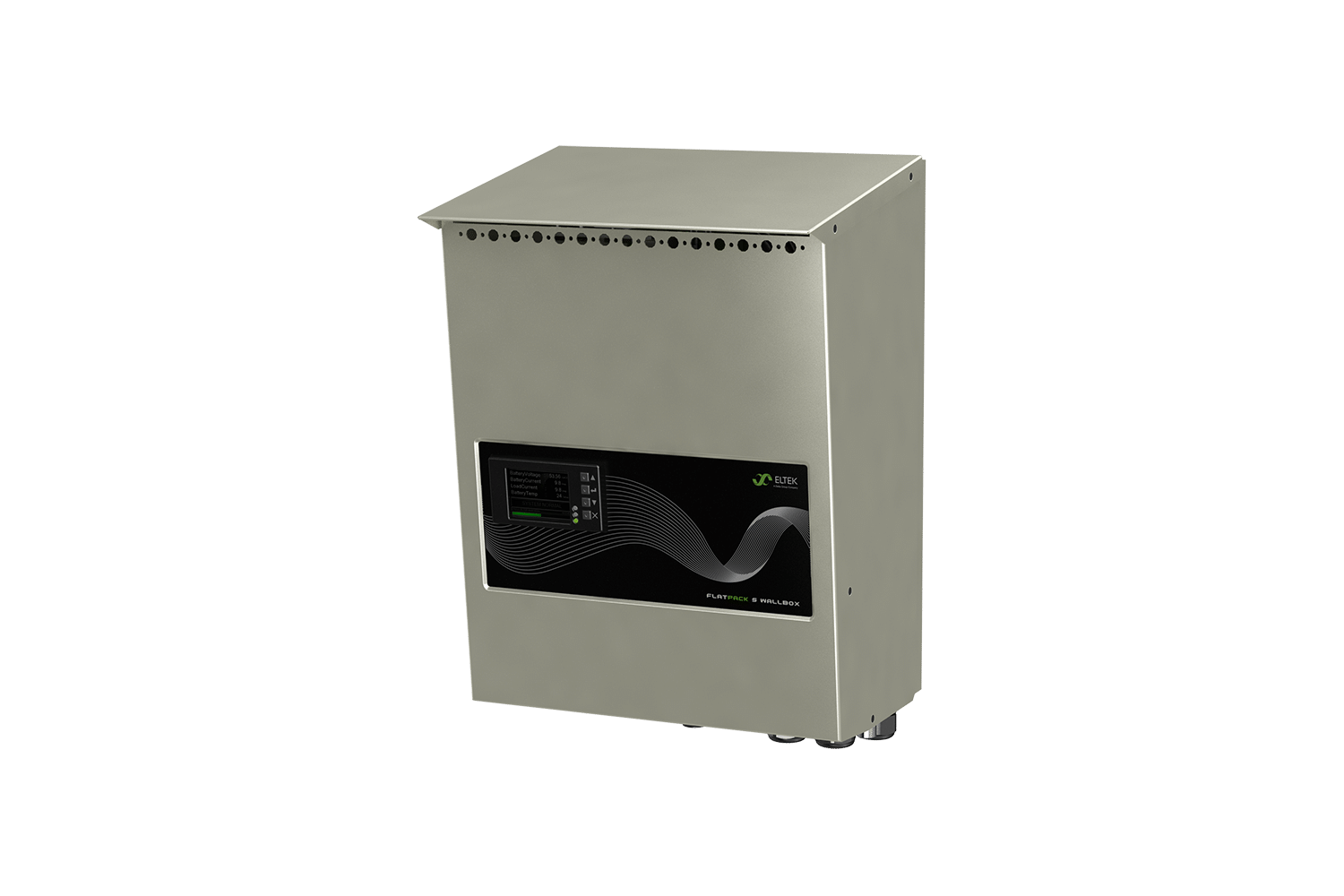

The Flatpack S Wallbox is a compact wall-mounted DC power supply for 24V, 36V and 48V systems up to 3.6 kW. Built around hot-pluggable Flatpack S rectifiers, it includes monitoring, LVBD, and battery and load breakers as standard. Its mechanical design and connections are compatible with the earlier SMPS 700 system, making it a direct retrofit.
Key Features
- 24V, 36V and 48V DC systems, up to 3.6 kW / 83.4 A
- AC or DC input
- Hot-pluggable rectifiers, modular architecture
- Direct retrofit for SMPS 700 systems
- Integrated LVBD, battery breaker and load breaker
- 2.2-inch TFT display, Ethernet, web interface, SNMP and Modbus TCP/IP
- IP23 with easily removable cover
Technical Specifications
| Input | |
|---|---|
| Voltage AC (operating range) | 85 – 305 VAC |
| Voltage DC (operating range) | 85 – 300 VDC |
| DC Output | |
| Voltage (adjustable range) | 24 – 48 VDC |
| Current (maximum) | 83.4 ADC |
| Max Voltage | 48 VDC |
| Max Power | 3.6 kW |
| Others | |
| Operating Temperature | −20 to 55°C |
| Storage Temperature | −40 to 85°C |
| Dimensions | |
| Dimensions (W x H x D) | 273 x 371 x 211 mm [10.73 x 14.61 x 8.31 inch] |
| Design Standards | |
| Ingress Protection (IP) | 23 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Industrial control rooms, utility substations, rail and telecom sites needing wall-mounted DC power, and upgrades of existing SMPS 700 installations.
