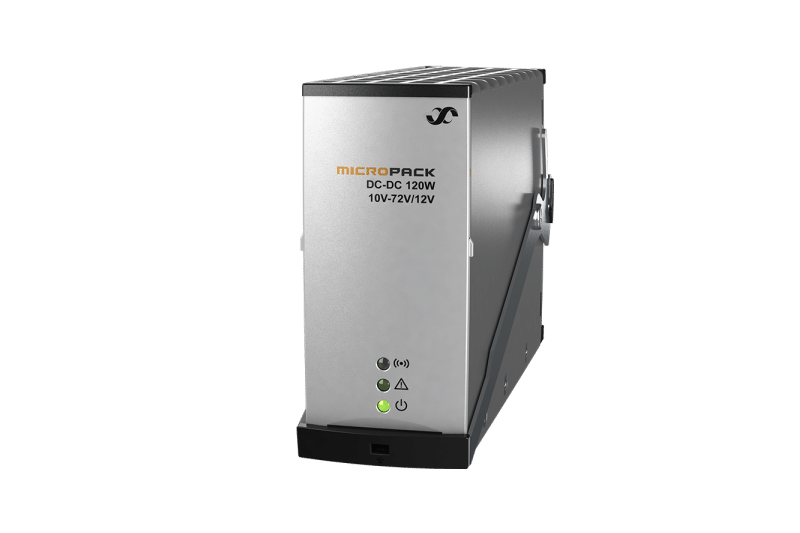

The Micropack DC/DC 120W is a convection-cooled converter that supplies 12 VDC equipment, scaling up to 480 W with several modules. Its 10–72 VDC input range lets it run from 12V, 24V, 48V and 60V battery backup systems, and it mounts on DIN rail in a compact 149 mm deep format.
Key Features
- 10.4–72 VDC input: works from 12, 24, 48 and 60V batteries
- 120 W at 12 VDC nominal, boost up to 15 A
- Convection cooled and silent
- Compact and shallow: 149 mm deep, DIN rail mountable
- Hot plug-in modules, on-site configurable
- Stand-alone option, quick-trip pulse
- Up to 92% efficiency
Technical Specifications
| Input | |
|---|---|
| Voltage DC (operating range) | 10.4 – 72 VDC |
| Current (maximum) | 13.5A (Boost 18A) |
| DC Output | |
| Max Power | 120 W |
| Voltage Range | 10.7 – 15 VDC (with potentiometer) 10.7 – 18 VDC (with controller) |
| Current (maximum) | 11.5A/Boost up to 15A |
| Others | |
| Efficiency (@ Vout 13.6V) | VIN 13.6V / 89.5% VIN 27.2V / 90.9% VIN 53.5V / 92% |
| Operating Temperature | −40 to 70°C |
| Storage Temperature | −40 to 70°C |
| Dimensions | |
| Dimensions (W x H x D) | 39 x 88.5 x 149 mm [1.54 x 3.48 x 5.87 inch] |
| Weight | 500 g |
| Certifications | |
| Safety | UL 60950-1-3rd edition, EN 60950-1-3rd edition |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Powering 12V radios, modems, sensors, PLCs and security equipment from an existing 24V, 48V or 60V battery system.
Related Eltek Products
- Micropack DIN rail power system – convection-cooled 12V, 24V and 48V modules
- Micropack Wallbox DC Power System – 12V, 24V or 48V micro backup system
- Flatpack2 DC/DC Converter 18-75V, 1350W – isolated 24V or 48V from the main battery
Browse the full DC/DC converter range or see all Delta Eltek DC power systems in Egypt.
Buy Micropack DC/DC Converter 10-72V/12V, 120W in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Micropack DC/DC Converter 10-72V/12V, 120W and our engineers will confirm the right configuration for your site.
