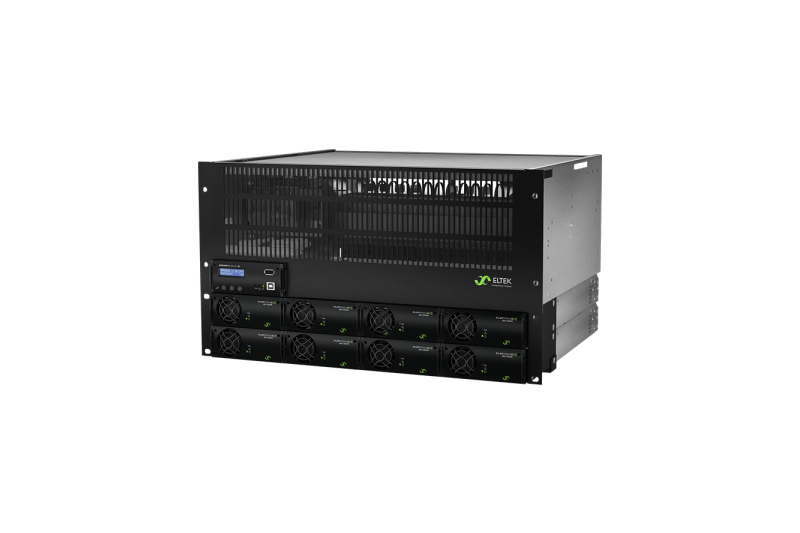

The Flatpack2 Integrated Power System is a complete 19-inch DC system for 48 VDC and 24 VDC applications, delivering up to 32 kW and 600 A. Rectifiers, controller, battery distribution with LVBD and up to 18 load positions with LVLD are integrated in one chassis, making it a compact choice for telecom sites.
Key Features
- Up to 32 kW and 600 A DC output
- Hot-pluggable Flatpack2 HE rectifiers
- Up to 6 battery breakers (250 A) with LVBD
- Up to 18 load breaker positions with LVLD
- Single-phase or three-phase AC input
- Digital controller with heat management
- Global approvals
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 300 VAC |
| Mains Configuration | 230 VAC Single phase; 230 VAC 3 phase (Δ); 230/400 VAC 3 phase (Y) |
| DC Output | |
| Current (maximum) | 600 ADC |
| Max Voltage | 48 VDC |
| Max Power | 32 kW |
| Battery Distribution | |
| Breaker Positions Up to | 6 |
| Breaker Rating Up to | 250 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 18 |
| Breaker Rating Up to | 125 A |
| LVLD | Yes |
| Others | |
| Operating Temperature | −40 to 60°C |
| Storage Temperature | −40 to 85°C |
| Dimensions | |
| Dimensions (W x H x D) | 482 x 267 x 380 mm [18.98 x 10.5 x 14.96 inch] |
| Weight | 5 kg |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
48 VDC and 24 VDC power for telecom base stations, central offices and enterprise networks.
