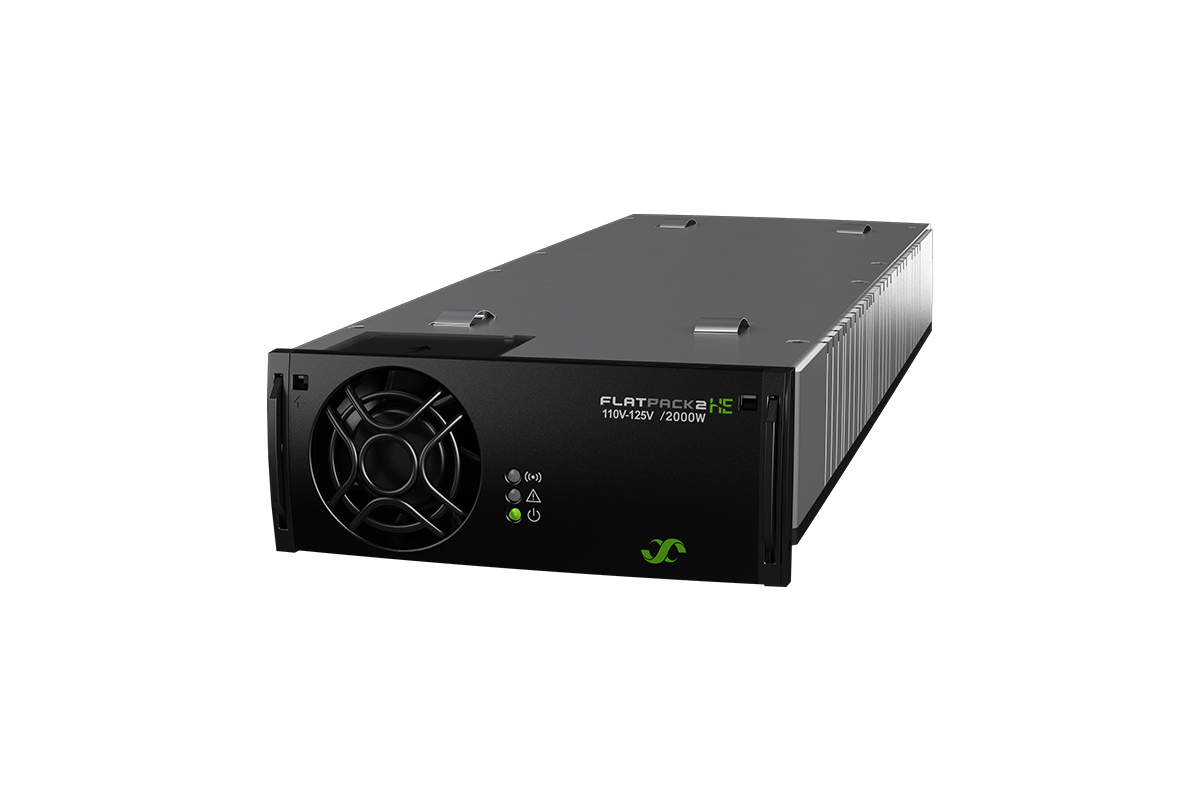

The Flatpack2 110–125V HE rectifier takes the high-efficiency Flatpack2 platform into industrial DC voltages. Two versions are offered: a 2000W module with an 89.2–171.6 VDC output range that also accepts DC input (so it can run as a DC/DC converter), and a 20A module rated up to 3025W. Both scale from a single 2 kW module to systems in the megawatt range under Eltek digital controllers.
Key Features
- Proven Flatpack2 reliability
- High power density
- Efficiency above 94%
- Application flexibility from 2 kW to 2 MW
- Accepts DC input on the 2000W model (DC/DC converter operation)
- Global compliance (CE, UL)
- Marine and offshore certifications
- Managed by Eltek digital controllers
Technical Specifications
| Parameter | 110/2000W HE | 110–120/20A HE |
|---|---|---|
| Input voltage (operating range) | 85 – 300 VAC/DC | 85 – 305 VAC |
| Input frequency | 0 – 66 Hz | 45 – 66 Hz |
| Input current (max.) | 11.9 ARMS | 18.64 ARMS |
| Output power (nominal input) | 2000 W | 3025 W |
| Output voltage range | 89.2 – 171.6 VDC | 90 – 151.25 VDC |
| Output current (max.) | 16.7 A | 20 A |
| Efficiency | > 94% | |
| Cooling | Single fan | |
| Operating temperature | −40 to +75°C | |
| Storage temperature | −40 to +85°C | |
| Dimensions (W x H x D) | 109 x 41.5 x 327 mm (4.29 x 1.63 x 12.78 in) | |
| Weight | 1.95 kg | |
| Ingress protection | IP20 | |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Industrial and power-utility DC systems built on 110V or 125V battery banks, such as substation control and protection, switchgear, process plants, and oil and gas facilities, including marine and offshore installations.
Related Eltek Products
- Flatpack2 220V HE rectifier – 220 VDC for data centers and industry
- Flatpack2 24V/1800W HE rectifier – 1800W, 75A for 24V battery systems
- Flatpack2 48-60V/2000W HE rectifier – one module for 48V and 60V batteries, including NiCad
Browse the full Flatpack2 rectifier range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack2 110-125V HE Rectifier in Egypt
KPS supplies, installs and supports Delta Eltek rectifiers and DC power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack2 110-125V HE Rectifier and our engineers will confirm the right configuration for your site.
110V DC Eltek Flatpack: common questions
Which Eltek Flatpack is used for 110 VDC systems?
The Flatpack2 110–125V HE rectifier, in a 2000 W version (89.2–171.6 VDC output) or a 20 A version up to 3025 W.
Can it charge 110 V lead-acid and NiCd batteries?
Yes. The wide adjustable output covers typical float and boost voltages for 110 V and 125 V lead-acid and nickel-cadmium battery banks. For complete systems, see the Flatpack2 Integrated 19-inch and IBB industrial power systems.
