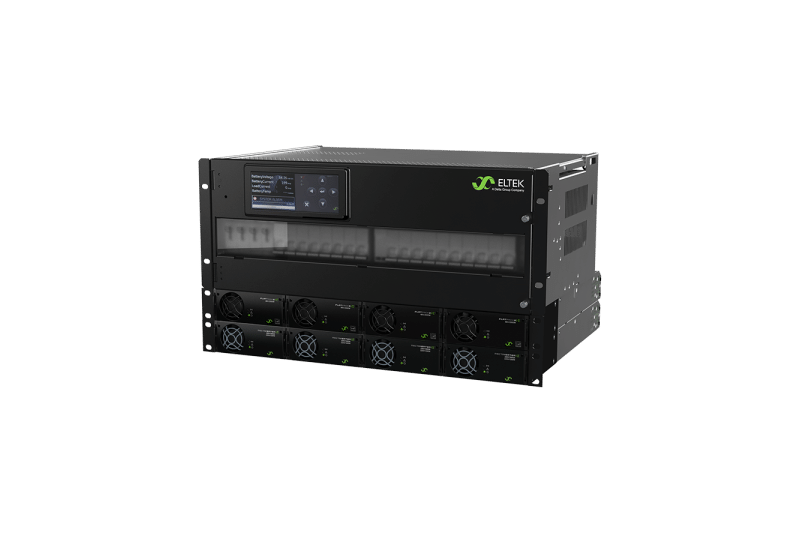

This Rectiverter Power Core pairs up to 6 kVA of backed-up 230 VAC with a large 48 VDC output for DC loads and battery charging. The three-phase version supplies up to 16.8 kW DC, using its 400 VAC TN input to balance load between DC and single-phase AC and reduce the input breaker size. The flexible AC input version can be wired single- or three-phase for IT or TN networks, supplies up to 24 kW DC and keeps AC input and output galvanically isolated.
Key Features
- 400 VAC three-phase input (flexible 1-phase/3-phase, IT or TN version available)
- 48 VDC input/output
- Up to 6 kVA single-phase AC output
- Up to 16.8 kW or 24 kW DC output
- 1-pole or 2-pole AC distribution and -48 VDC distribution options
- Battery distribution with LVBD, load distribution with LVLD
- Built-in transfer technology, 150% overload for 15 s
- Hot-pluggable, Smartpack2 or Smartpack S controller
Technical Specifications
| Specification | 3-phase input, 16.8 kW DC | Flexible AC input, up to 24 kW DC |
|---|---|---|
| Input | ||
| Current (maximum) | 128 ADC | |
| Max Input AC Voltage | 475 VAC | |
| Max Input DC Voltage | 58 VDC | |
| Mains Configuration | 230/400 VAC 3 phase (Y) | |
| AC Output | ||
| Max Output AC Voltage | 240 VAC | |
| Max Power | 6 kVA / 4.8 kW | |
| DC Output | ||
| Current (maximum) | 350 ADC | |
| Max Voltage | 58 VDC | |
| Max Power | 16.8 kW | 24 kW |
| Battery Distribution | ||
| Breaker Positions Up to | 2 | |
| Breaker Rating Up to | 200 A | 250 A |
| LVBD | Yes | |
| DC Load Distribution | ||
| Number of Breakers | 14 | |
| Breaker Rating Up to | 63 A | |
| LVLD | Yes | |
| AC Load Distribution | ||
| Number of Breakers | 10 | |
| Breaker Rating Up to | 10 A | |
| Others | ||
| Operating Temperature | −40 to 55°C | |
| Dimensions | ||
| Dimensions (W x H x D) | 482 x 267 x 432 mm [18.98 x 10.51 x 17.01 inch] | 482 x 311 x 432 mm [18.98 x 12.24 x 17.01 inch] |
| Mounting Dimensions | Width 19 inch / Height 6U / Depth 432 mm | Width 19 inch / Height 7U / Depth 432 mm |
| Design Standards | ||
| Ingress Protection (IP) | 20 | |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Telecom sites with heavy 48 VDC loads that also need a backed-up single-phase AC supply for routers, servers or site equipment.
