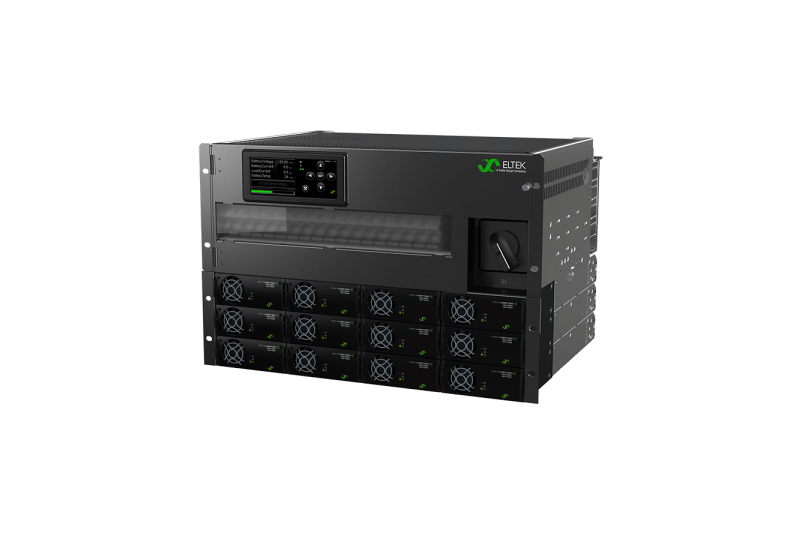

The Rectiverter Power Core 18 kVA is a 7U building block that combines AC and DC feeds, providing backed-up three-phase or single-phase AC alongside 48 VDC or 110 VDC for DC loads and battery charging. Total output is limited to 24 kW, of which up to 18 kVA can be AC and up to 14.4 kW DC, set according to the load. A built-in manual bypass switch and a Smartpack2 controller are included.
Key Features
- 230/400 VAC three-phase (Y) or single-phase input/output
- 48 VDC or 110 VDC input/output
- 24 kW total: up to 18 kVA AC and 14.4 kW DC
- 1-phase or 3-phase AC distribution options, up to 18 breakers
- Built-in manual bypass switch and transfer technology
- 150% overload for 15 s, 600% quick-trip for 20 ms
- Hot-pluggable, Smartpack2 controller
- 19-inch, 7U
Technical Specifications
| Specification | 48 VDC | 110 VDC |
|---|---|---|
| Input | ||
| Current (maximum) | 384 ADC | 150 ADC |
| Max Input AC Voltage | 475 VAC | |
| Max Input DC Voltage | 58 VDC | 145 VDC |
| Mains Configuration | 230/400 VAC 3 phase (Y); 230 VAC Single phase | |
| AC Output | ||
| Max Output AC Voltage | 415 VAC | |
| DC Output | ||
| Voltage (adjustable range) | 43 – 58 VDC | – |
| Current (maximum) | 300 ADC | 150 ADC |
| Max Voltage | 58 VDC | 145 VDC |
| Max Power | 14.4 kW | |
| DC Load Distribution | ||
| LVLD | No | |
| AC Load Distribution | ||
| Number of Breakers | 18 | |
| Breaker Rating Up to | 20 A | |
| Others | ||
| Operating Temperature | −40 to 55°C | |
| Dimensions | ||
| Dimensions (W x H x D) | 482 x 311 x 432 mm [18.98 x 12.24 x 17.01 inch] | |
| Mounting Dimensions | Width 19 inch / Height 7U / Depth 432 mm | |
| Weight | 27 kg | |
| Design Standards | ||
| Ingress Protection (IP) | 20 | |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Telecom and industrial sites that need three-phase AC backup with 48 VDC, or utility and switchgear installations on 110 VDC.
