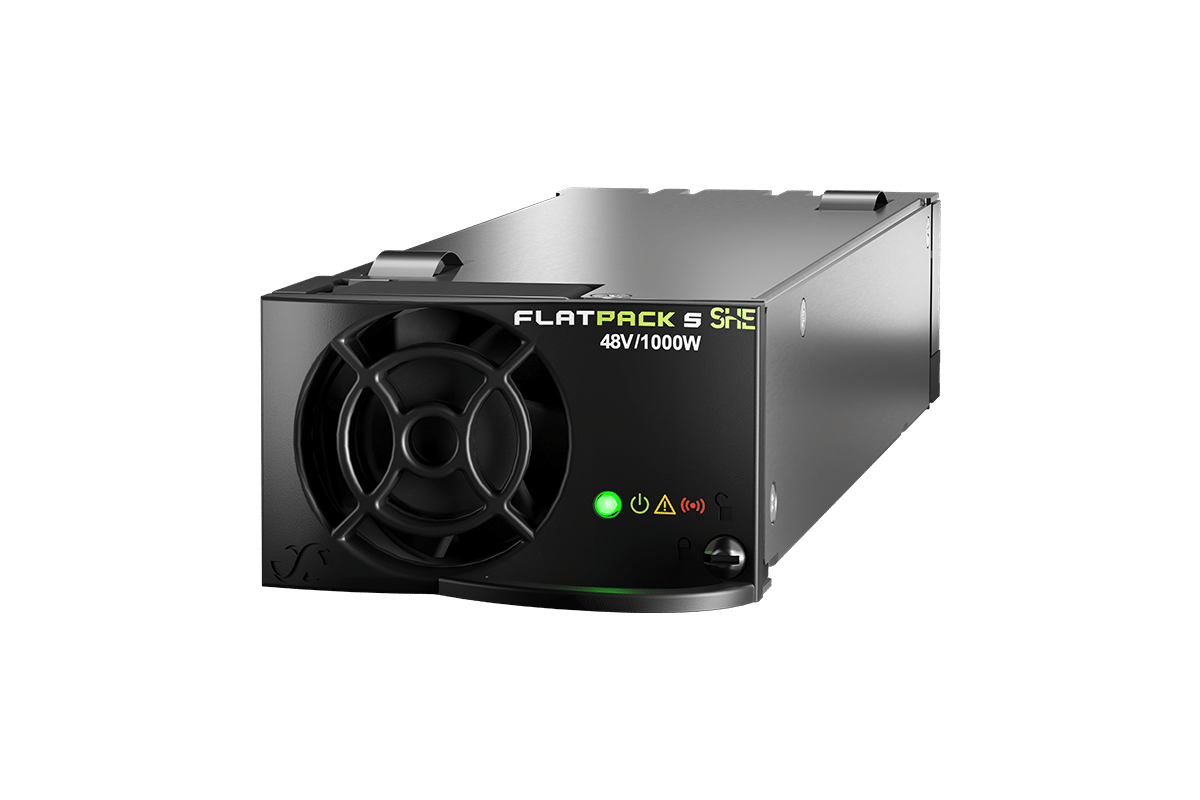

The Flatpack S 48V/1000W SHE rectifier packs telecom-grade specifications, OR-ing protection and super high efficiency into a small 217 mm deep module. With over 97% efficiency it keeps losses and cooling demand to a minimum. It fits existing 1U and 2U Flatpack S power cores with the Smartpack S controller and battery and load distribution, covering 2 to 5 kW applications in less than 6 or 12 litres.
Key Features
- Super high efficiency: above 97%
- Small and short: 217 mm deep, 620 g
- Power dense: 26 W/inch³
- OR-ing protection on output
- Hot pluggable
- Voltage and power keying
- Operating temperature −40°C to +85°C
Technical Specifications
| Input voltage (AC operating range) | 85 – 275 VAC |
|---|---|
| Input current (max.) | 5.9 ARMS (at nominal input, full load) |
| Input frequency | 45 – 66 Hz |
| Power factor | > 0.99 at full load |
| Output power (max.) | 1000 W |
| Output voltage (adjustable) | 42 – 57.6 VDC |
| Output current (max.) | 20.9 A (at VOUT < 48 VDC) |
| Efficiency | > 97% |
| Operating temperature | −40 to +85°C |
| Dimensions (W x H x D) | 72 x 41.5 x 217 mm (2.83 x 1.63 x 8.54 in) |
| Weight | 620 g |
| Marine certification | DNVGL-CG-0339 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Small and medium 48V telecom sites: small cells, outdoor and indoor radio sites, access network nodes and enterprise equipment where space and heat dissipation are limited.
