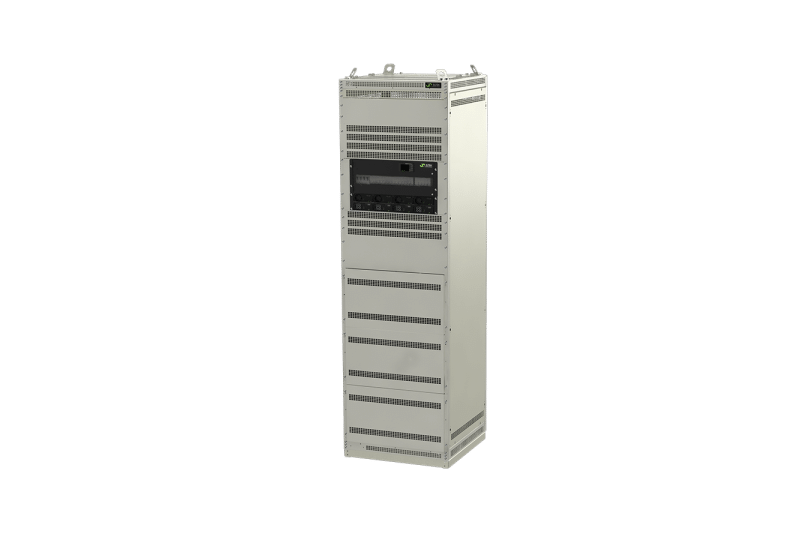

The Rectiverter Indoor System combines AC and DC power in one cabinet: up to 6 kVA of backed-up 230 VAC for AC loads plus up to 24 kW of 48 VDC for DC loads and battery charging. Built on the FPC cabinet platform, it accepts single-phase 230 VAC or three-phase 400 VAC input and offers 1-pole or 2-pole AC distribution and -48 VDC distribution.
Key Features
- 230 VAC single-phase or 400 VAC three-phase input
- Up to 6 kVA single-phase AC output
- Up to 24 kW DC output at 48 VDC (500 A)
- 1-pole or 2-pole AC distribution options
- -48 VDC distribution with LVLD, up to 30 breakers
- Built-in transfer technology, 150% overload for 15 s
- Hot-pluggable modules, Smartpack2 or Smartpack S controller
- Built on the FPC cabinet platform
Technical Specifications
| Input | |
|---|---|
| Current (maximum) | 128 ADC |
| Max Input AC Voltage | 475 VAC |
| Max Input DC Voltage | 58 VDC |
| Mains Configuration | 230/400 VAC 3 phase (Y) |
| AC Output | |
| Max Output AC Voltage | 240 VAC |
| Max Power | 6 kVA / 4 kW |
| DC Output | |
| Current (maximum) | 500 ADC |
| Max Voltage | 58 VDC |
| Max Power | 24 kW |
| Battery Distribution | |
| Breaker Positions Up to | 3 |
| Breaker Rating Up to | 200 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 30 |
| Breaker Rating Up to | 63 A |
| LVLD | Yes |
| AC Load Distribution | |
| Number of Breakers | 10 |
| Breaker Rating Up to | 10 A |
| Others | |
| Operating temperature | −10 to 55°C |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 2000 x 600 mm [23.62 x 78.74 x 23.62 inch] |
| Mounting Dimensions | Width 23 inch / Height 44U / Depth 600 mm |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Telecom sites, central offices and enterprise equipment rooms that need both 48 VDC and backed-up 230 VAC from one battery system.
