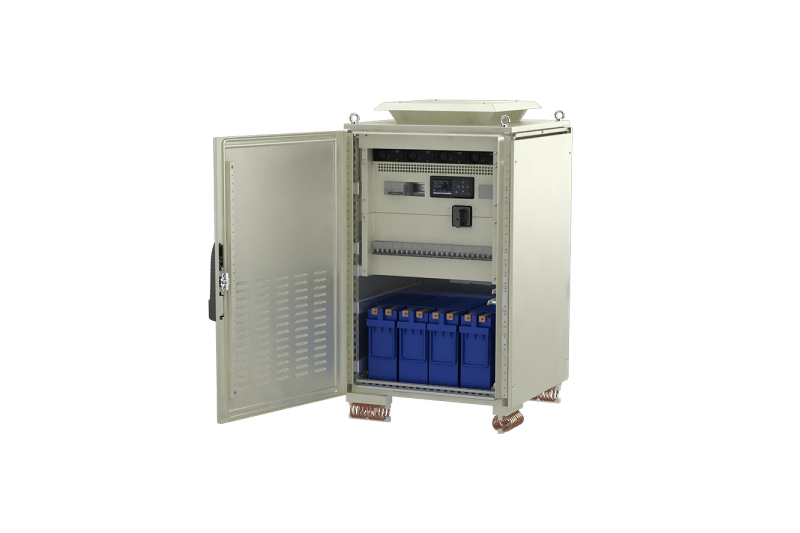

The Rectiverter 6 kVA Marine system supplies uninterrupted 230 VAC (or 115 VAC) to marine AC loads while charging a 48 VDC battery bank. Rectiverter modules combine rectifier, inverter and transfer functions, so during a mains outage the system feeds AC loads from the battery without a break. It includes dual A and B AC feeds, a manual bypass switch, a ground-fault alarm and DNV and ABS approvals in an IP33 floor cabinet.
Key Features
- 230 or 115 VAC input/output with dual A and B AC feeds
- Up to 6 kVA single-phase AC output
- 2-pole AC distribution, 12 breakers
- Ground-fault alarm (RCR)
- Built-in manual bypass switch and transfer technology
- 150% overload for 15 s, 600% quick-trip current for 20 ms
- Hot-pluggable modules, Smartpack2 controller
- DNV and ABS approvals, IP33
Technical Specifications
| Input | |
|---|---|
| Current (maximum) | 128 ADC |
| Voltage AC (operating range) | 185 – 275 VAC |
| Voltage DC (operating range) | 45 – 58 VDC |
| Max Input AC Voltage | 275 VAC |
| Max Input DC Voltage | 58 VDC |
| Mains Configuration | 230 VAC Single phase |
| AC Output | |
| Voltage (adjustable) | 200 – 240 VAC |
| Max Output AC Voltage | 240 VAC |
| Max Power | 6 kVA / 4.8 kW |
| DC Output | |
| Voltage (adjustable range) | 43 – 58 VDC |
| Current (maximum) | 12.5 ADC |
| Max Voltage | 58 VDC |
| Max Power | 0.6 kW |
| Battery Distribution | |
| Breaker Positions Up to | 2 |
| Breaker Rating Up to | 125 A |
| AC Load Distribution | |
| Number of Breakers | 12 |
| Breaker Rating Up to | 6 A |
| Others | |
| Cooling | Convection |
| Efficiency | 96% |
| Operating Temperature | −10 to 45°C |
| Storage Temperature | −40 to 85°C |
| Mounting Type | Floor |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 900 x 600 mm [23.7 x 35.5 x 23.7 inch] |
| Weight | 70 kg |
| Design Standards | |
| Ingress Protection (IP) | 33 |
| Certifications | |
| Marine | DNV 2.4; IEC 60945/DNVGL CG-0339; ABS |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Uninterruptible AC power for bridge, navigation, communication and automation systems on ships and offshore installations.
Related Eltek Products
- Rectiverter Power Core 6 kVA – 6 kVA AC and 4.8 kW DC for 48/110/220 VDC
- Flatpack S Marine Power System 8 kW, 24 VDC – 8 kW, 24 VDC for on-board use
- Rectiverter 48V – 3-in-1 rectifier, inverter and transfer module
Browse the full Rectiverter system range or see all Delta Eltek DC power systems in Egypt.
Buy Rectiverter 6 kVA Marine Power System in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Rectiverter 6 kVA Marine Power System and our engineers will confirm the right configuration for your site.
