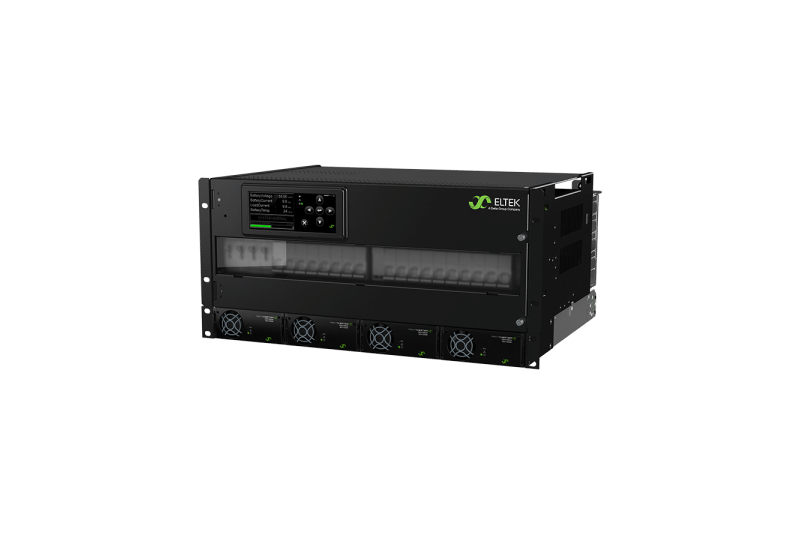

The Rectiverter Power Core 6 kVA is a 5U, 19-inch building block that provides backed-up single-phase 230 VAC or 115 VAC together with DC for loads and battery charging. It is available for 48 VDC, with or without manual bypass, and for 110 VDC and 220 VDC with manual bypass. Total output is 8 kW: up to 6 kVA AC and 4.8 kW DC. The 48 VDC version without bypass adds battery and -48 VDC load distribution.
Key Features
- 230 or 115 VAC single-phase input/output
- 48, 110 or 220 VDC input/output
- 8 kW total: up to 6 kVA AC and 4.8 kW DC
- 1-pole or 2-pole AC distribution options
- Built-in manual bypass switch (MB versions)
- -48 VDC distribution with LVBD and LVLD (48 VDC version)
- Built-in transfer technology, 150% overload for 15 s
- Hot-pluggable, Smartpack2 controller (Smartpack S option on 48 VDC)
Technical Specifications
| Specification | 48 VDC with DC distribution | 48 VDC, manual bypass | 110 VDC, manual bypass | 220 VDC, manual bypass |
|---|---|---|---|---|
| Input | ||||
| Current (maximum) | 128 ADC | 128 ADC | 50 ADC | 27 ADC |
| Max Input AC Voltage | 275 VAC | |||
| Max Input DC Voltage | 58 VDC | 58 VDC | 145 VDC | 290 VDC |
| Mains Configuration | 230 VAC Single phase | |||
| AC Output | ||||
| Max Output AC Voltage | 240 VAC | |||
| Max Power | 6 kVA / 4.8 kW | |||
| DC Output | ||||
| Voltage (adjustable range) | 43 – 58 VDC | 43 – 58 VDC | – | – |
| Current (maximum) | 100 ADC | 100 ADC | 50 ADC | 22 ADC |
| Max Voltage | 58 VDC | 58 VDC | 145 VDC | 290 VDC |
| Max Power | 4.8 kW | |||
| Battery Distribution | ||||
| Breaker Positions Up to | 2 | – | – | – |
| Breaker Rating Up to | 250 A | – | – | – |
| LVBD | Yes | – | – | – |
| DC Load Distribution | ||||
| Breaker Positions Up to | 14 | – | – | – |
| Breaker Rating Up to | 63 A | – | – | – |
| LVLD | Yes | – | No | No |
| AC Load Distribution | ||||
| Number of Breakers | 10 | 18 | 18 | 18 |
| Breaker Rating Up to | 10 A | |||
| Others | ||||
| Operating Temperature | −40 to 55°C | |||
| Cooling | – | – | – | Single fan |
| Dimensions | ||||
| Dimensions (W x H x D) | 482 x 222 x 432 mm [19 x 8.74 x 17.01 inch] | 483 x 222 x 432 mm [19 x 8.74 x 17.01 inch] | 482 x 222 x 432 mm [18.98 x 8.74 x 17.01 inch] | 483 x 222 x 432 mm [19 x 8.74 x 17.01 inch] |
| Mounting Dimensions | Width 19 inch / Height 5U / Depth 432 mm | |||
| Weight | 16 kg | 16 kg | 27 kg | 16 kg |
| Design Standards | ||||
| Ingress Protection (IP) | 20 | |||
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Telecom, utility and industrial sites that need a compact 6 kVA AC UPS alongside a 48V, 110V or 220V DC supply.
Related Eltek Products
- Rectiverter Power Core 18 kVA – 18 kVA AC and 14.4 kW DC in 7U
- Rectiverter Power Core 6 kVA AC / 16.8-24 kW DC – 6 kVA AC with up to 24 kW of 48 VDC
- Rectiverter 2U Power Core 6 kVA – 6 kVA AC and 4.8 kW DC in 2U
Browse the full Rectiverter system range or see all Delta Eltek DC power systems in Egypt.
Buy Rectiverter Power Core 6 kVA in Egypt
KPS supplies, installs and supports Delta Eltek power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Rectiverter Power Core 6 kVA and our engineers will confirm the right configuration for your site.
