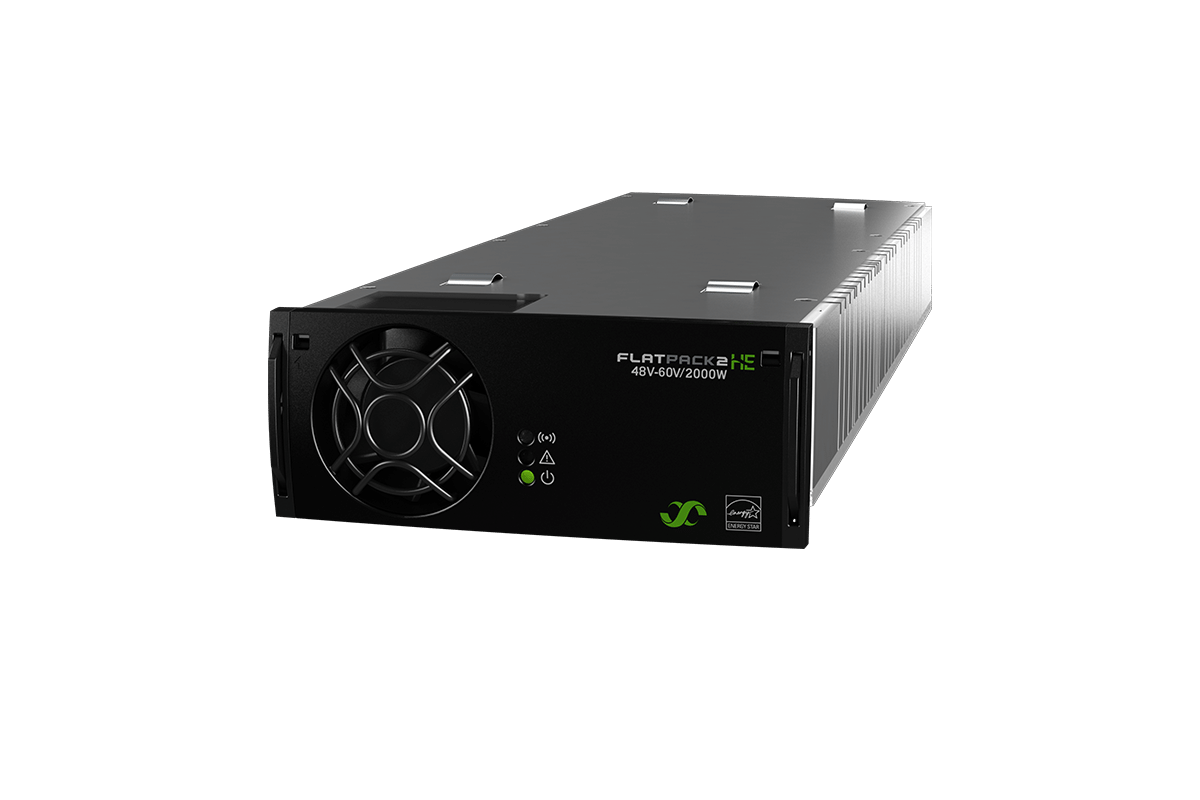

The Flatpack2 48–60V/2000W HE rectifier covers two battery voltages with one module. Its 39.9–72 VDC adjustable output makes it a cost-efficient rectifier for 48V and 60V lead-acid battery systems as well as 48V NiCad strings. It accepts AC or DC input and carries marine and offshore certifications for industrial use.
Key Features
- High efficiency: 96.2%
- Proven reliability and high power density
- Scales from 2 kW to multi-cabinet installations
- Modular design with a mean time to repair under 5 minutes
- Accepts DC input (DC/DC converter operation)
- Global compliance (CE, UL, NEBS)
- Marine and offshore certifications
Technical Specifications
| Input voltage (AC operating range) | 85 – 300 VAC |
|---|---|
| Input voltage (DC operating range) | 80 – 300 VDC |
| Output power (max.) | 2000 W |
| Output voltage (adjustable) | 39.9 – 72 VDC |
| Output current (max.) | 41.7 ADC |
| Max. output voltage | 72 VDC |
| Efficiency | 96.2% |
| Cooling | Single fan |
| Operating temperature | −40 to +75°C |
| Dimensions (W x H x D) | 109 x 41.5 x 327 mm (4.29 x 1.63 x 12.78 in) |
| Weight | 1.95 kg |
| Marine certification | DNV 2.4 (part no. 241115.705M) |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Industrial DC systems on 48V or 60V lead-acid batteries or 48V NiCad batteries, including oil and gas, marine and offshore, and utility installations.
Related Eltek Products
- Flatpack2 48V HE rectifiers – 2000W and 3000W at up to 96.5% efficiency
- Flatpack2 60V/3000W SHE rectifier – 3000W Super HE module for 60V systems
- Flatpack2 110-125V HE rectifier – industrial 110–125V DC, 2000W or 20A
Browse the full Flatpack2 rectifier range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack2 48-60V/2000W HE Rectifier in Egypt
KPS supplies, installs and supports Delta Eltek rectifiers and DC power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack2 48-60V/2000W HE Rectifier and our engineers will confirm the right configuration for your site.
