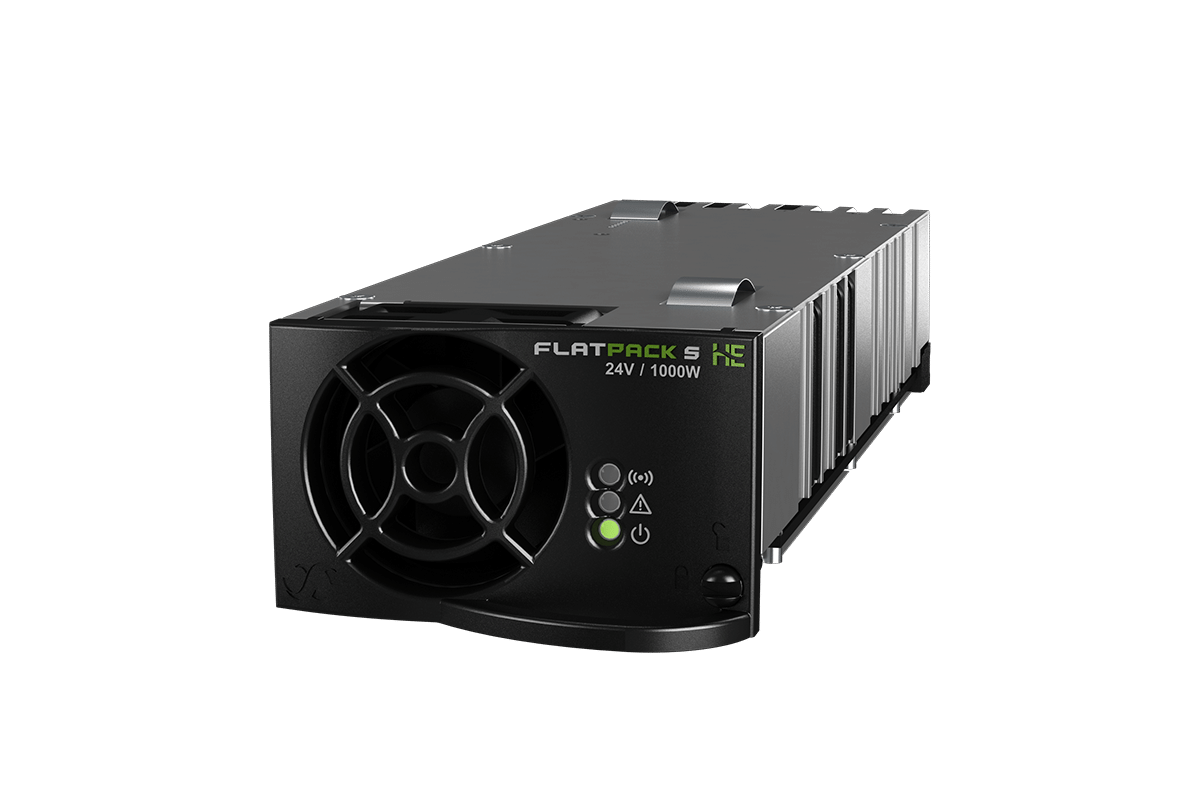

The Flatpack S 24V/1000W HE rectifier is built for rail and power-utility applications that demand reliable, safe DC power. It offers industry-leading power density for its segment, several safety functions and a wide operating temperature range in a small 217 mm deep housing. In a 3U rack with the Smartpack S controller, Flatpack S rectifiers cover 2 to 8 kW using less than 18 litres.
Key Features
- Small and short: 217 mm deep
- Power dense: 26 W/inch³
- High efficiency: 92.5%
- OR-ing protection on output
- Hot pluggable
- Voltage keying
- Accepts AC (85–305 V) or DC (85–300 V) input
Technical Specifications
| Input voltage (AC operating range) | 85 – 305 VAC |
|---|---|
| Input voltage (DC operating range) | 85 – 300 VDC |
| Output power (max.) | 1000 W |
| Output voltage (adjustable) | 21.5 – 28 VDC |
| Output current (max.) | 28 ADC |
| Max. output voltage | 28 VDC |
| Efficiency | 92.5% |
| Cooling | Single fan |
| Operating temperature | −40 to +85°C |
| Dimensions (W x H x D) | 72 x 41.5 x 217 mm (2.83 x 1.63 x 8.54 in) |
| Weight | 850 g |
| Ingress protection | IP20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
24V DC power for railway signalling and trackside equipment, substations and power-utility control, and industrial automation.
Related Eltek Products
- Flatpack S 24V/1000W SIL3 OVP rectifier – SIL3 overvoltage protection for safety systems
- Flatpack S 36V/1000W HE UI rectifier – wide-input 36V module with rail EMC certification
- Flatpack2 24V/1800W HE rectifier – 1800W, 75A for 24V battery systems
Browse the full Flatpack S rectifier range or see all Delta Eltek DC power systems in Egypt.
Buy Flatpack S 24V/1000W HE Rectifier in Egypt
KPS supplies, installs and supports Delta Eltek rectifiers and DC power systems across Egypt, including sizing, battery matching and commissioning. Request a quote for the Flatpack S 24V/1000W HE Rectifier and our engineers will confirm the right configuration for your site.
