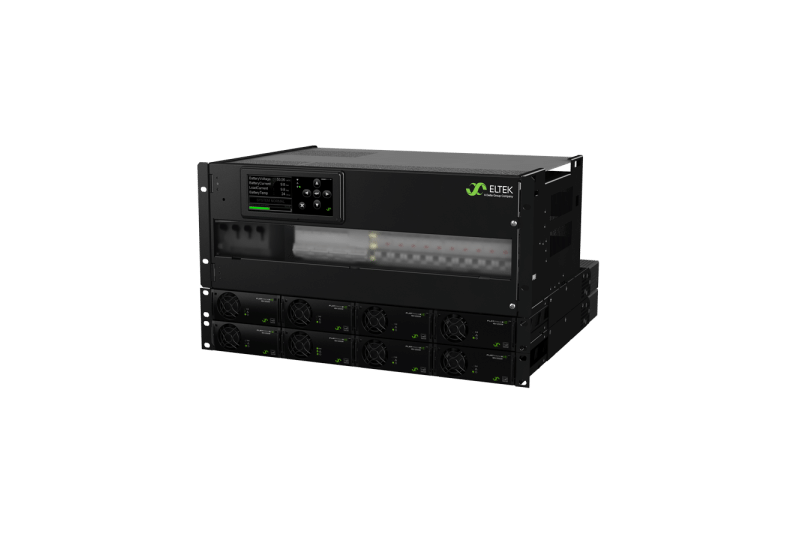

The IBF AC/DC industrial bulk feed unit is a 19-inch, 6U power core for 24 to 220 VDC systems from 2 to 16 kW. Built around Flatpack2 rectifiers, it suits switchgear, telecom, emergency lighting and alarm systems, and can be used stand-alone or integrated into an IBB system.
Key Features
- 24–220 VDC output, 2–16 kW
- Houses up to 8 hot-pluggable Flatpack2 rectifiers
- 85–300 VAC input
- Bulk-feed output, up to 300 A
- 19-inch, 6U, compact and simple to install
- 3.2-inch TFT display, Ethernet and SNMP
- 6 digital inputs and 6 relay outputs
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 275 VAC |
| Mains Configuration | 230/400 VAC 3 phase (Y) |
| DC Output | |
| Current (maximum) | 300 ADC |
| Max Voltage | 297 VDC |
| Max Power | 16 kW |
| Others | |
| Operating Temperature | −40 to 55°C |
| Dimensions | |
| Dimensions (W x H x D) | 482 x 267 x 432 mm [18.98 x 10.51 x 17.01 inch] |
| Mounting Dimensions | Width 19 inch / Height 6U / Depth 432 mm |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Switchgear and substations, industrial plants, emergency lighting and alarm systems, as a stand-alone supply or inside an IBB cabinet.
Related Eltek Products
- IBF DC/DC-HV Industrial Converter Unit – secondary DC from an 85–300 VDC supply
- IBB Industrial Power System – 24–220 VDC cabinet, 2–16 kW
- Flatpack2 Integrated 19-inch Power Supply – 2U industrial supply for 24–220 VDC
