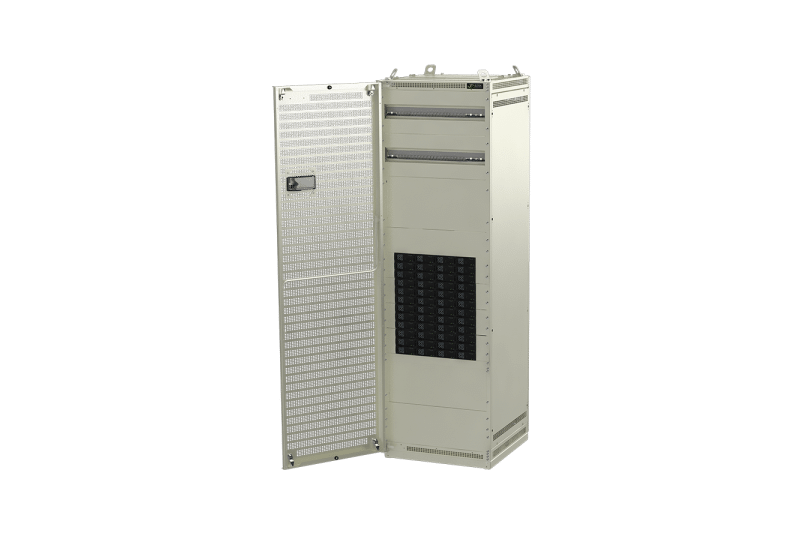

The Rectiverter Scalable System 18–72 kVA supplies backed-up 400 VAC three-phase or 230 VAC single-phase power and 48 VDC for battery charging and DC loads. It comes in three configurations with maximum AC output of 36, 54 or 72 kVA, with AC distribution built into the cabinet for three-phase or single-phase breakers. Alongside the AC output it can feed up to 57.6 kW of -48 VDC loads through built-in DC distribution.
Key Features
- 400 VAC three-phase (Y) input and output
- 48 VDC input/output
- Configurations up to 36, 54 or 72 kVA AC (max 57.6 kW)
- Up to 57.6 kW DC output
- Integrated AC distribution, up to 30 breakers; DC distribution option
- Manual bypass option, up to 4 battery strings
- 150% overload for 15 s, 600% quick-trip for 20 ms
- Hot-pluggable, Smartpack2 controller
Technical Specifications
| Input | |
|---|---|
| Current (maximum) | 1536 ADC |
| Voltage AC (operating range) | 320 – 475 VAC |
| Voltage DC (operating range) | 40 – 58 VDC |
| Max Input AC Voltage | 475 VAC |
| Mains Configuration | 230/400 VAC 3 phase (Y) |
| AC Output | |
| Max Output AC Voltage | 415 VAC |
| Max Power | 72 kVA / 57.6 kW |
| DC Output | |
| Voltage (adjustable range) | 43 – 58 VDC |
| Current (maximum) | 1200 ADC |
| Max Voltage | 58 VDC |
| Max Power | 57.6 kW |
| Battery Distribution | |
| Breaker Positions Up to | 4 |
| Breaker Rating Up to | 1600 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 30 |
| Breaker Rating Up to | 120 A |
| LVLD | No |
| AC Load Distribution | |
| Number of Breakers | 30 |
| Breaker Rating Up to | 63 A |
| Others | |
| Cooling | Single fan |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 2000 x 600 mm [23.7 x 78.8 x 23.7 inch] |
| Mounting Dimensions | Width 19 inch / Height 44U / Depth 600 mm |
| Weight | 300 kg |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Telecom hubs, broadcast and enterprise sites that need three-phase AC backup and 48 VDC power in one cabinet.
