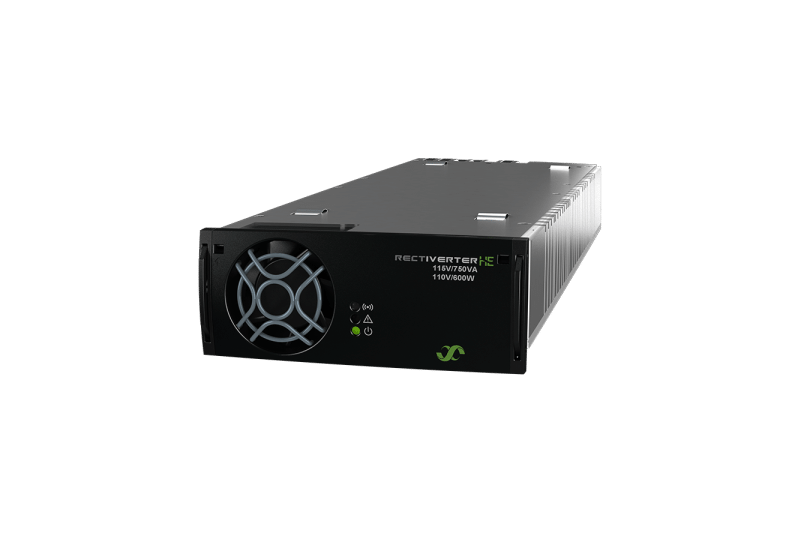

The Rectiverter 110V DC module combines rectifier, inverter and power-source transfer in one hot-pluggable, Flatpack2-size unit for 110 VDC battery systems. It charges the 110V battery while feeding AC and DC loads at the same time, and during a mains outage supplies the AC load from the battery. Two versions are available: 115 VAC / 750 VA with 600 W DC, and 230 VAC / 1500 VA with 1200 W DC.
Key Features
- 3-in-1: rectifier, inverter and power-source transfer
- 110 VDC battery systems (97–145 VDC output)
- 115V/750VA–600W or 230V/1500VA–1200W versions
- Up to 96% efficiency
- Built on patented Flatpack2 HE technology
- Hot pluggable, voltage keying
- Modular design, global compliance
Technical Specifications
| Specification | 115V/750VA – 110V/600W | 230V/1500VA – 110V/1200W |
|---|---|---|
| Input | ||
| Voltage AC (operating range) | 95 – 140 VAC | 185 – 275 VAC |
| Voltage DC (operating range) | 90 – 145 VDC | |
| AC Output | ||
| Voltage (adjustable) | 100 – 127 VAC | 200 – 240 VAC |
| DC Output | ||
| Max Power | 600 W | 1200 W |
| Voltage (adjustable range) | 97 – 145 VDC | |
| Current (maximum) | 6.3 ADC | 11.5 ADC |
| Max Voltage | 145 VDC | |
| Battery Distribution | ||
| LVBD | Yes | – |
| DC Load Distribution | ||
| LVLD | Yes | – |
| Others | ||
| Cooling | Single fan | |
| Efficiency | 93% | 96% |
| Operating Temperature | −40 to 75°C | |
| Insulation | Yes | – |
| Dimensions | ||
| Dimensions (W x H x D) | 109 x 41.5 x 327 mm [4.29 x 1.63 x 12.78 inch] | |
| Weight | 1.95 kg | |
| Design Standards | ||
| Ingress Protection (IP) | 20 | |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Substations, switchgear, rail signalling and industrial control systems on 110 VDC that also need backed-up AC for SCADA, communication or IT equipment.
