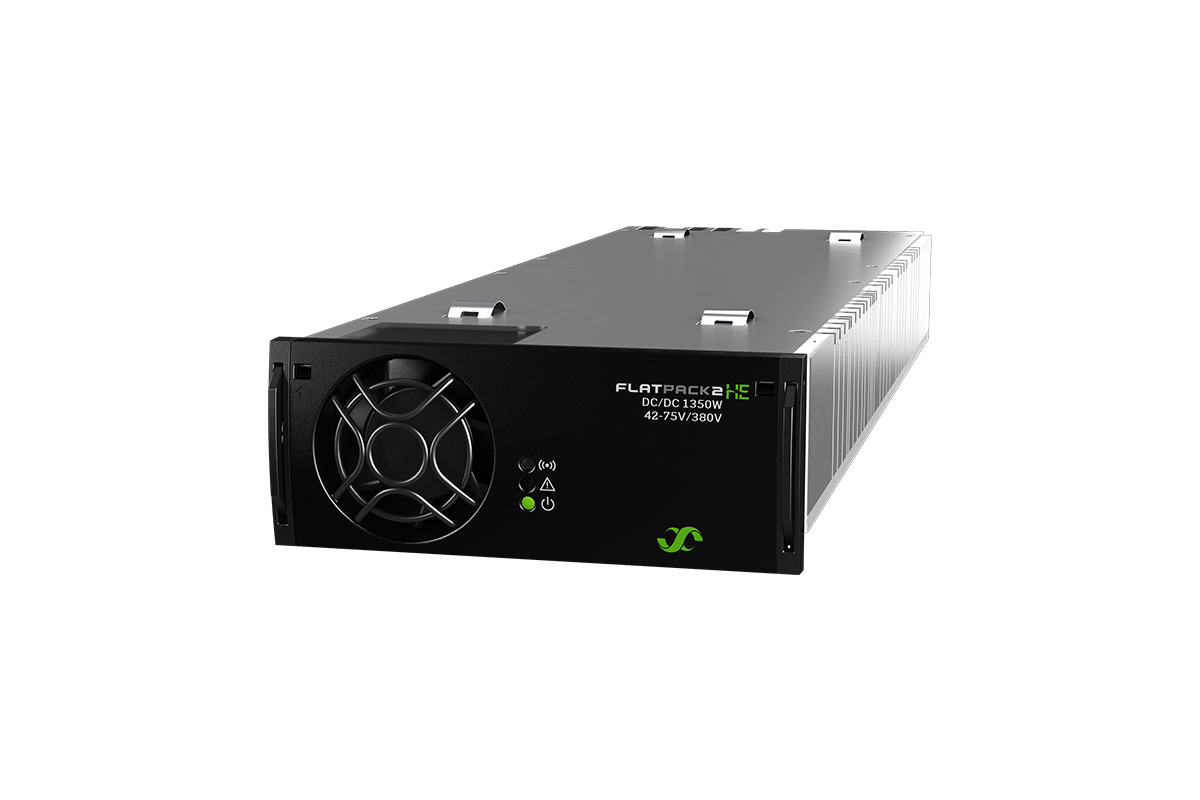

This Flatpack2 DC/DC converter produces a secondary 310–400 VDC output from a main 48V or 60V battery bank. That enables highly efficient transmission of battery-backed energy to small remote sites without grid power. The galvanically isolated CAN bus links to the Eltek system controller for monitoring and control without a separate controller.
Key Features
- 42–75 VDC input from 48V or 60V batteries
- 1350 W at 310–400 VDC adjustable output, 4.5 A
- 94.5% efficiency
- OR-ing protection on output
- Boost mode
- Voltage keying
- Seamless integration in the Eltek control system
Technical Specifications
| Input | |
|---|---|
| Voltage DC (operating range) | 42 – 75 VDC |
| DC Output | |
| Max Power | 1350 W |
| Voltage (adjustable range) | 310 – 400 VDC |
| Current (maximum) | 4.5 ADC |
| Max Voltage | 400 VDC |
| Others | |
| Cooling | Single fan |
| Efficiency | 94.5% |
| Operating Temperature | −40 to 75°C |
| Dimensions | |
| Dimensions (W x H x D) | 109 x 41.5 x 327 mm [4.29 x 1.63 x 12.78 inch] |
| Weight | 1.95 kg |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Remote power feeding from a central office to small cells, fronthaul and other grid-less remote sites over 380 VDC.
