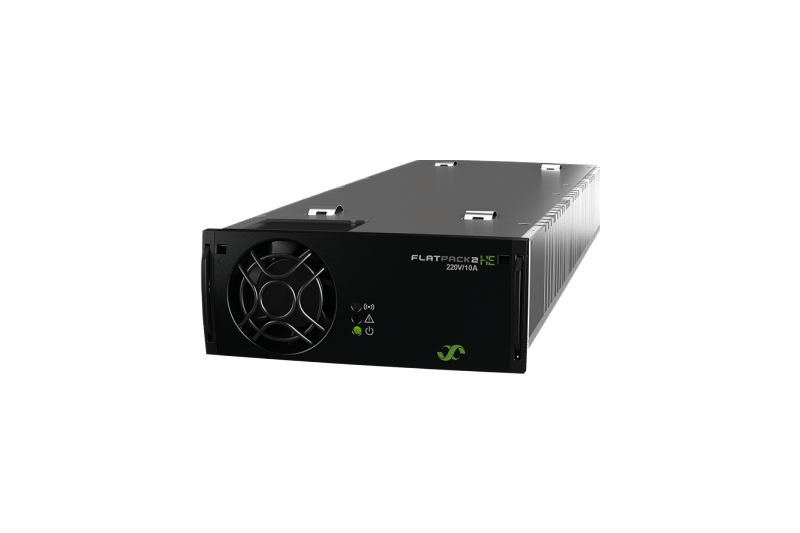

The Flatpack2 220V HE rectifier is designed for 220 VDC power systems. Using the 10A model, systems can grow into the megawatt range for small and large modular data centers. A 220 VDC architecture is an efficient and reliable alternative to a traditional AC UPS: standard components, cables and distribution can be used, and most IT equipment designed for 208/230 VAC can be connected directly to the 220 VDC bus.
Key Features
- High efficiency: above 95% (2000W) and above 95.5% (10A)
- Proven reliability and high power density
- Scales from 2 kW to multi-cabinet installations
- Accepts DC input on the 2000W model (DC/DC converter operation)
- Power factor 0.99 at 50–100% load
- Hot pluggable rectifiers
- Global compliance (CE, UL) and marine certification
- Managed by Eltek digital controllers
Technical Specifications
| Parameter | 2000W HE | 10A HE |
|---|---|---|
| Input voltage range | 85 – 300 VAC/DC | 85 – 305 VAC |
| Input frequency | 0 – 66 Hz | 45 – 66 Hz |
| Input current (max.) | 11.9 ARMS | 17 ARMS |
| Power factor | 0.99 (at 50–100% load) | |
| Default output voltage | 245.3 VDC | |
| Output voltage range | 178.5 – 297 VDC | 198 – 280 VDC |
| Output power (nominal input) | 2000 W | 2800 W |
| Output current (max., at 220 VDC) | 9.16 A | 10 A |
| Efficiency | > 95% | > 95.5% |
| Operating temperature | −40 to +75°C | |
| Storage temperature | −40 to +85°C | |
| Dimensions (W x H x D) | 109 x 41.5 x 327 mm (4.29 x 1.63 x 12.78 in) | |
| Weight | 1.95 kg | |
| Marine certification | DNVGL-CG-0339 | |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
220 VDC power for modular and enterprise data centers as an alternative to AC UPS, plus industrial and utility 220V DC systems for control, protection and emergency loads.
