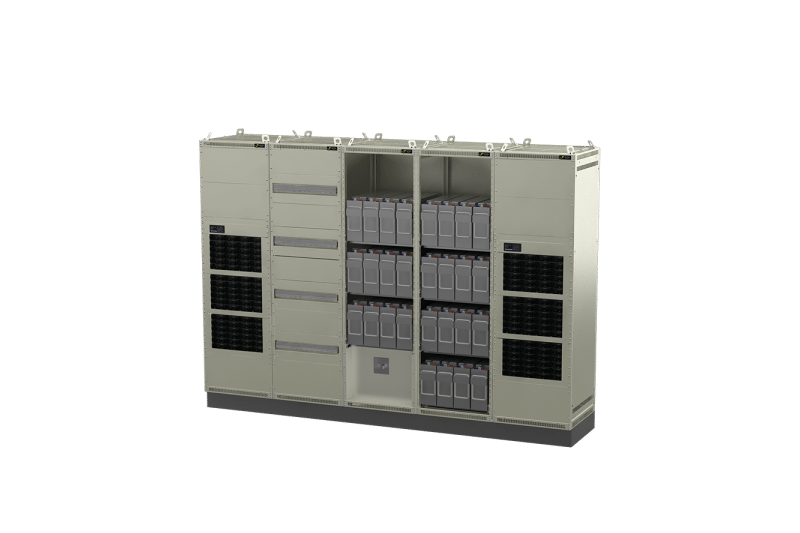

The Eltek Converged Power System (CPS) provides AC and DC power at any required voltage from a single modular infrastructure. Built around the Flatpack2 HE power converter, it scales on a build-as-you-grow basis up to 954 kVA of AC and 864 kW of DC, with hot plug-in modules and a maximum MTTR of 2 minutes. It can reduce or remove ATS and switchgear, transfer seamlessly to a generator and integrate renewable energy sources.
Key Features
- Modular hot plug-in design, maximum 2-minute MTTR
- AC and DC loads at varying voltages from one infrastructure
- Up to 954 kVA / 795 kW AC and 864 kW DC (up to 400 VDC)
- Build-as-you-grow scalability
- Option for seamless transfer to generator
- ATS and switchgear removed or reduced
- Integrates renewable energy sources
- Comprehensive alarm, control and remote management
Technical Specifications
| Input | |
|---|---|
| Voltage AC (operating range) | 187 – 520 VAC |
| Max Input AC Voltage | 480 VAC |
| Mains Configuration | 230/400 VAC 3 phase (Y); 230 VAC Single phase |
| AC Output | |
| Max Output AC Voltage | 480 VAC |
| Max Power | 954 kVA / 795 kW |
| DC Output | |
| Current (maximum) | 2600 ADC |
| Max Voltage | 400 VDC |
| Max Power | 864 kW |
| Port | |
| Available Ports | Ethernet; RS-232; RS-485 |
| Battery Distribution | |
| Breaker Positions Up to | 16 |
| Breaker Rating Up to | 600 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 18 |
| Breaker Rating Up to | 2600 A |
| AC Load Distribution | |
| Number of Breakers | 12 |
| Breaker Rating up to | 1600 A |
| Others | |
| Operating Temperature | −20 to 45°C |
| Mounting Type | Floor |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 2160 x 600 mm [23.7 x 85 x 23.7 inch] |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Telecom core sites, data centers, power generation, rail, marine and offshore, and oil and gas facilities that require very high availability.
Related Eltek Products
- MiniCPS 65 kW Power System – combined AC UPS and 48 VDC cabinet
- 380 Vdc Power Solutions – scalable 380 VDC systems up to 864 kW
- Rectiverter Scalable System 120 kW – up to 90 kVA AC and 72 kW DC
