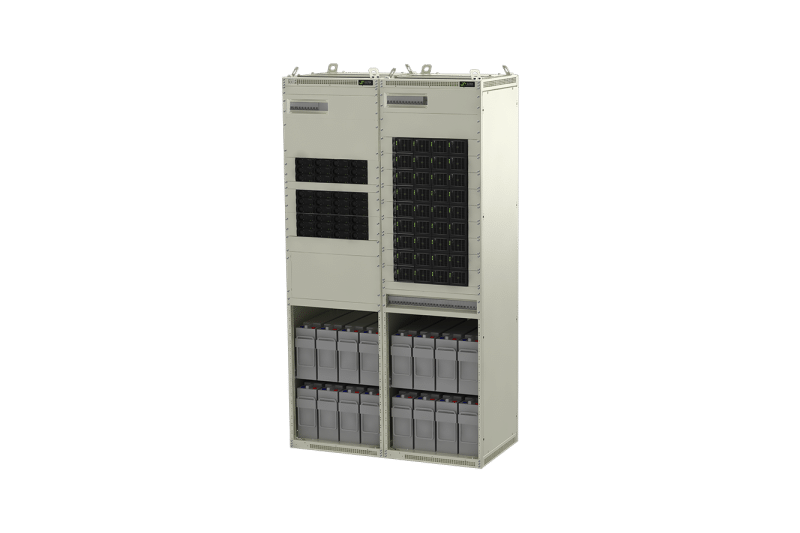

The MiniCPS indoor system combines AC and DC feeds in one unit, delivering backed-up 230/400 VAC for AC loads and 48 VDC for DC loads and battery charging at the same time. During a mains outage it keeps feeding both from the battery until the main or secondary AC source returns. It supports dual-source input, up to 75 kVA of AC and 33 kW of DC, with surge protection on input and output.
Key Features
- 230 VAC single-phase or 400 VAC three-phase (Y) input, dual source
- Single-phase and three-phase output (with three-phase input)
- Up to 75 kVA AC and 33 kW DC at 48 VDC
- 1-pole or 2-pole AC MCB distribution and -48 VDC MCB distribution
- Surge protection on input and output
- Built-in source transfer technology
- Hot-pluggable power modules, Smartpack2 control
- Space for up to 4 battery trays
Technical Specifications
| Input | |
|---|---|
| Voltage AC (operating range) | 260 – 460 VAC |
| Max Input AC Voltage | 400 VAC |
| Mains Configuration | 230 VAC Single phase; 230/400 VAC 3 phase (Y) |
| AC Output | |
| Max Output AC Voltage | 400 VAC |
| Max Power | 75 kVA / 60 kW |
| Configurable Inputs | |
| Number of Configurable Inputs | 6 |
| DC Output | |
| Current (maximum) | 687.5 ADC |
| Max Voltage | 57.6 VDC |
| Max Power | 33 kW |
| Port | |
| Available Ports | Ethernet; RS-232; RS-485 |
| Battery Distribution | |
| Breaker Positions Up to | 4 |
| Breaker Rating Up to | 600 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 13 |
| Breaker Rating Up to | 100 A |
| AC Load Distribution | |
| Number of Breakers | 12 |
| Breaker Rating up to | 63 A |
| Others | |
| Operating Temperature | −20 to 45°C |
| Maximum Battery Trays | 4 |
| Mounting Type | Floor |
| Dimensions | |
| Dimensions (W x H x D) | 1200 x 2200 x 600 mm [47.4 x 78.8 x 23.7 inch] |
| Weight | 250 kg |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Telecom hubs, edge data centers, broadcast and enterprise sites that need combined AC UPS and 48 VDC power in one cabinet.
