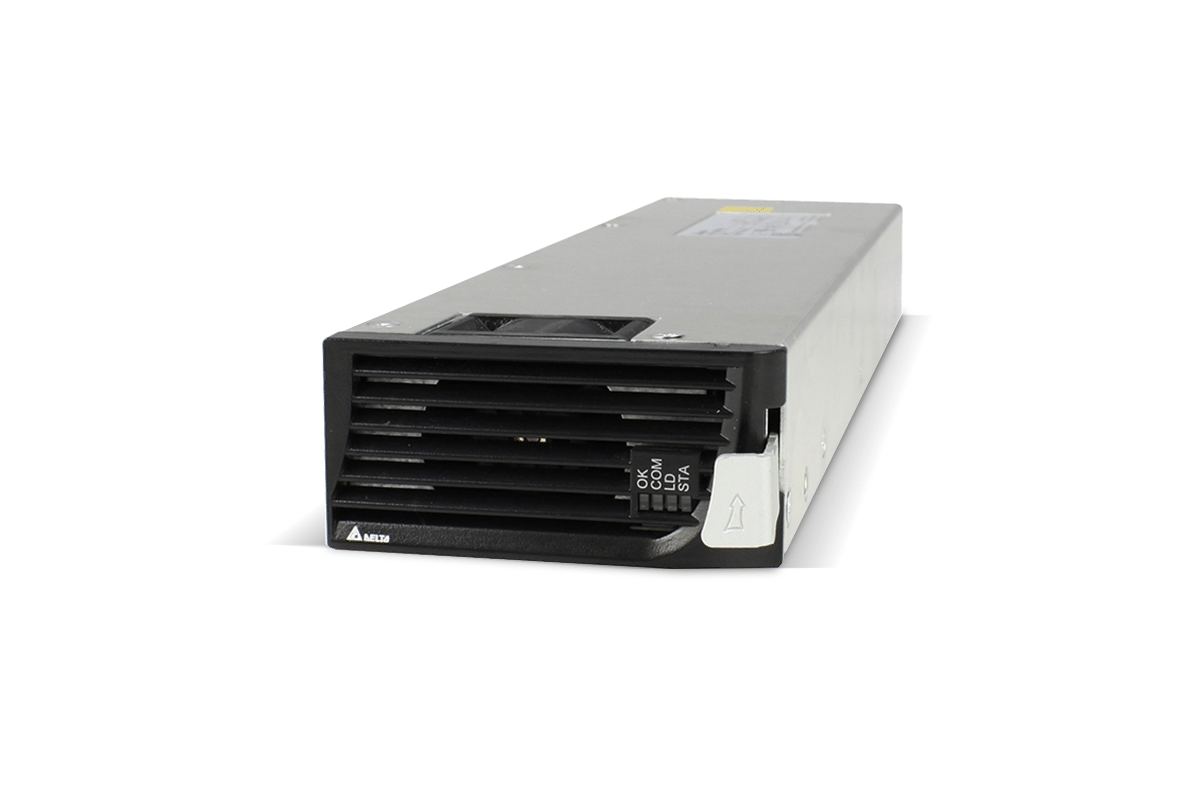

The Delta CPC 1500B-48 is a modular DC/DC converter that powers 48V equipment from a 24V battery system. It accepts 19–30 VDC (27 VDC nominal) and delivers up to 1550 W and 29 A at an adjustable 48–56 VDC, with a peak efficiency of 94%. Its shelf-mounted modular format integrates easily into the standard shelves of existing DC power systems, so a 24V site can supply 48V loads without a second battery plant.
Key Features
- Converts a 24V battery supply (19–30 VDC) to 48–56 VDC
- Up to 1550 W and 29 A output
- Peak efficiency of 94%
- Default output 54 VDC, adjustable from 48 to 56 VDC
- Modular format for the standard shelves of existing DC power systems
- Power density 18.03 W/inch³
- Compact module: 84.5 x 40 x 403.3 mm, 1.8 kg
Technical Specifications
| Input voltage (nominal) | 27 VDC |
|---|---|
| Input voltage range | 19 – 30 VDC |
| Output voltage (default) | 54 VDC |
| Output voltage (adjustable) | 48 – 56 VDC |
| Maximum output current | 29 A |
| Maximum power (nominal input) | 1550 W |
| Power density | 18.03 W/inch³ |
| Peak efficiency | 94% |
| Dimensions (W x H x D) | 84.5 x 40.0 x 403.3 mm (3.32 x 1.57 x 15.87 in) |
| Weight | 1.8 kg (3.96 lb) |
Specifications from Delta Electronics and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Adding 48V telecom equipment such as radios, routers and transmission gear to sites built on 24V battery systems, including utility, rail and industrial installations.
Related Products
- Delta CPC 3000B-57 boost converter – 48V to 57–59 VDC for remote radio units
- Flatpack2 DC/DC converter 18-75V, 1350W – isolated 24V or 48V from the main battery
- Flatpack2 24V/1800W HE rectifier – 1800W, 75A for 24V battery systems
Browse the full DC/DC converter range or see all Delta Eltek DC power systems in Egypt.
Buy the CPC 1500B-48 in Egypt
KPS supplies, installs and supports Delta DC power equipment across Egypt, including sizing, integration into existing power shelves and commissioning. Request a quote for the CPC 1500B-48 and our engineers will confirm the right configuration for your site.
