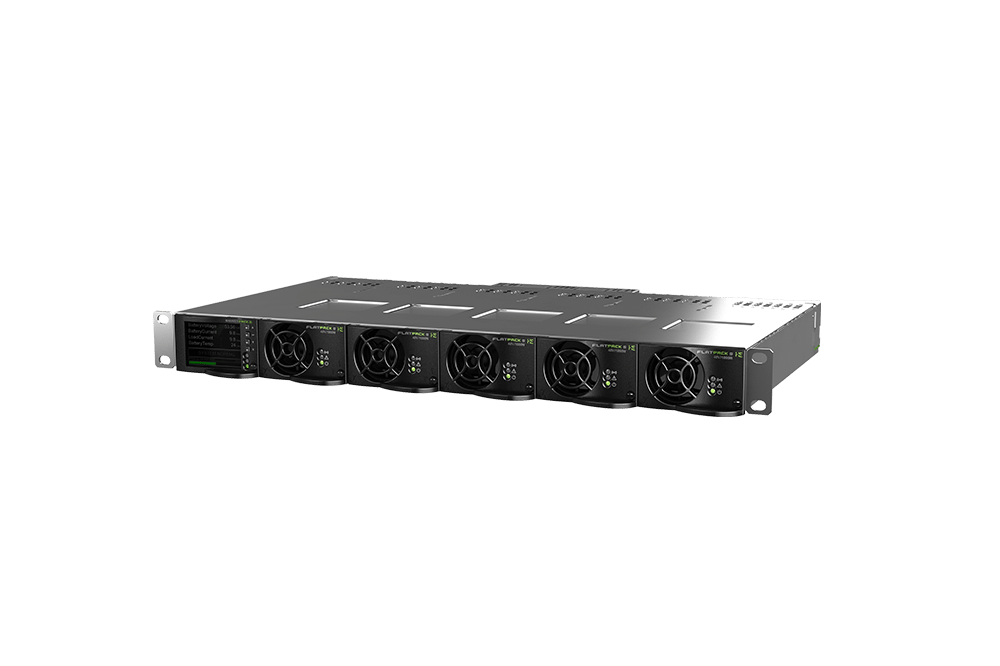

The Flatpack S 1U power shelf is a compact building block for integrating Flatpack S rectifiers into a larger power system. It accepts all Flatpack S HE rectifiers, from the 24V/1000W and 24V SIL3 to the 48V/1000W and 48V/1800W, with AC or DC input and a floating 24 VDC or 48 VDC output. At 270 mm deep and 1U high, it can be flush or mid mounted.
Key Features
- Compact 1U HE power shelf, 270 mm deep
- Hot-pluggable rectifiers: FPS 24/1000 HE, 24/1000 HE SIL3, 48/1000 HE and 48/1800 HE
- AC or DC input (185–305 V nominal)
- Floating 48 VDC or 24 VDC output, up to 225 A
- Flush or mid mounting
- Advanced control and monitoring
Technical Specifications
| Input | |
|---|---|
| Voltage (nominal) | 185 – 305 VAC/DC |
| Maximum Current (per feed) | 21 Arms |
| Max Input AC Voltage | 305 VAC |
| Mains Configuration | 3 x single phase |
| DC Output | |
| Current (maximum) | 187.5 ADC; 225 ADC |
| Max Voltage | 60 VDC |
| Connection | M6 insert nuts |
| Others | |
| Operating Temperature | −40 to 85°C |
| Mounting | Flush mount or mid mount |
| Dimensions | |
| Dimensions (W / H / D) | 19” / 1U / 270 mm |
| Weight | 2.8 kg |
| Certifications | |
| Electrical Safety | UL 60950-1 2ed, EN 60950-1 2ed |
| EMC | ETSI EN 300 386 V.1.6.1 EN 61000-6-1 (immunity, light industry) EN 61000-6-2 (immunity, industry) EN 61000-6-3 (emission, light industry) EN 61000-6-4 (emission, industry) |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
System integrators and OEMs building custom 24V or 48V DC systems for telecom, industrial, rail and offshore applications.
