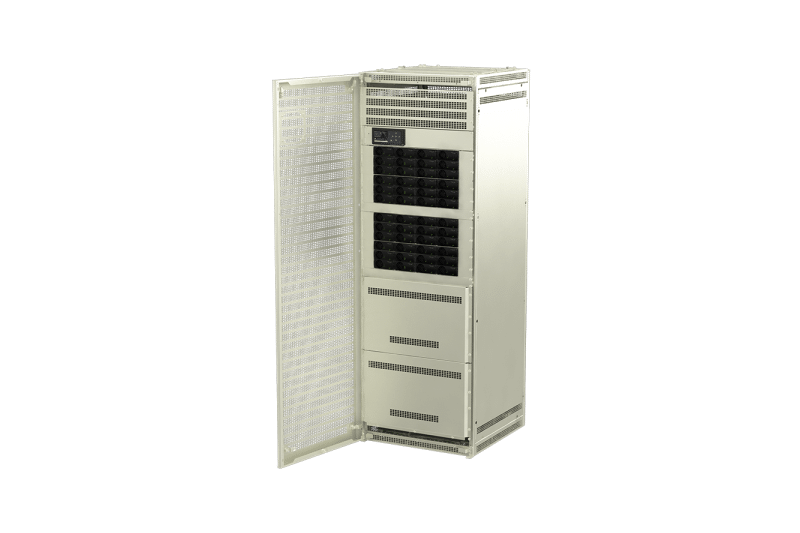

The Eltek Large Power System is a 48 VDC cabinet platform for high-capacity sites from 36 to 288 kW. It can be fitted with Flatpack2 2 kW, Flatpack2 3 kW or DPR 6000 rectifiers: the basic Flatpack2 2 kW configuration has six power shelves, expandable to 12; with Flatpack2 3 kW it starts at three shelves, expandable to nine; and with DPR 6000 it starts at two shelves, expandable to four. Cabinets can be paralleled for more power or extra distribution.
Key Features
- Flatpack2 2 kW, Flatpack2 3 kW or DPR 6000 rectifier options
- Up to 108 kW and 2250 A per cabinet at 48 VDC
- Cabinet paralleling for expanded power or additional distribution
- Up to 4 battery breakers (1600 A) with LVBD
- Up to 8 load breakers (600 A) with LVLD, MCB distribution options
- Configurable mains input with surge protection device
- Full-height lockable door, top or bottom cable entry
- System monitoring
Technical Specifications
| Input | |
|---|---|
| Mains Configuration | 230 VAC Single phase; 230 VAC 3 phase (Δ); 230/400 VAC 3 phase (Y) |
| DC Output | |
| Current (maximum) | 2250 ADC |
| Max Voltage | 48 VDC |
| Max Power | 108 kW |
| Battery Distribution | |
| Breaker Positions Up to | 4 |
| Breaker Rating Up to | 1600 A |
| LVBD | Yes |
| DC Load Distribution | |
| Breaker Positions Up to | 8 |
| Breaker Rating Up to | 600 A |
| LVLD | Yes |
| Others | |
| Options | – MCB distributions – Intern cabinet connection links – Low Voltage Battery disconnect – Low Voltage Load disconnect – Top or Bottom cable entry |
| Mounting Type | Floor |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 2000 x 600 mm [23.6 x 78.7 x 23.6 inch] |
| Weight | 180 kg |
| Design Standards | |
| Ingress Protection (IP) | 20 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Central offices, mobile switching centers, data centers and core network sites with large 48 VDC loads.
