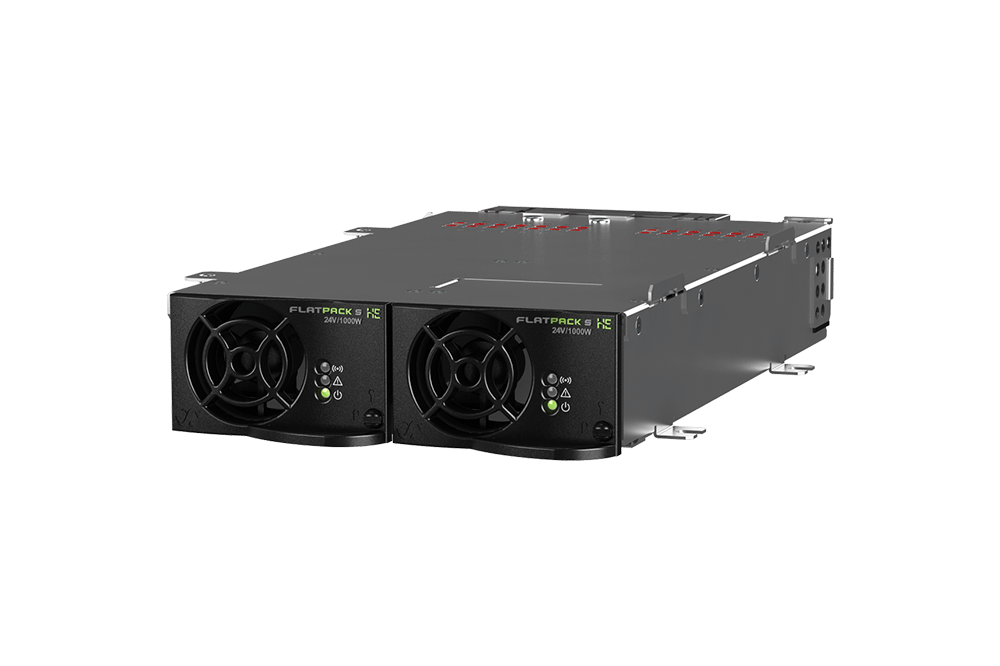

The Flatpack S Stand-Alone power rack is an easy-to-place, high-efficiency DC power building block. Each slim rack holds two Flatpack S rectifiers, and up to three units stack together for 48V systems up to 10.2 kW or 24V systems up to 6 kW. Flying input leads and an optional external controller keep installation simple.
Key Features
- Compact HE power rack for 2 Flatpack S rectifiers
- Supports FPS 24/1000 HE, 24/1000 HE SIL3 OVP, 48/1000 HE and 48/1800 HE
- Stack up to 3 units
- 48V up to 10.2 kW, 24V up to 6 kW
- Floating output
- Flying leads on input
- Optional external controller: Compack, Smartpack S panel mount or Smartpack2
- 274 mm depth
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 300 VAC |
| Max Input DC Voltage | 400 VDC |
| Mains Configuration | 230 VAC Single phase |
| DC Output | |
| Current (maximum) | 85 ADC |
| Max Voltage | 60 VDC |
| Max Power | 3.6 kW |
| Dimensions | |
| Dimensions (W x H x D) | 48.9 x 172 x 274 mm [1.93 x 6.77 x 10.79 inch] |
| Weight | 0.91 kg |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Machine builders, industrial automation, rail and offshore systems that need a small DC supply placed close to the load.
