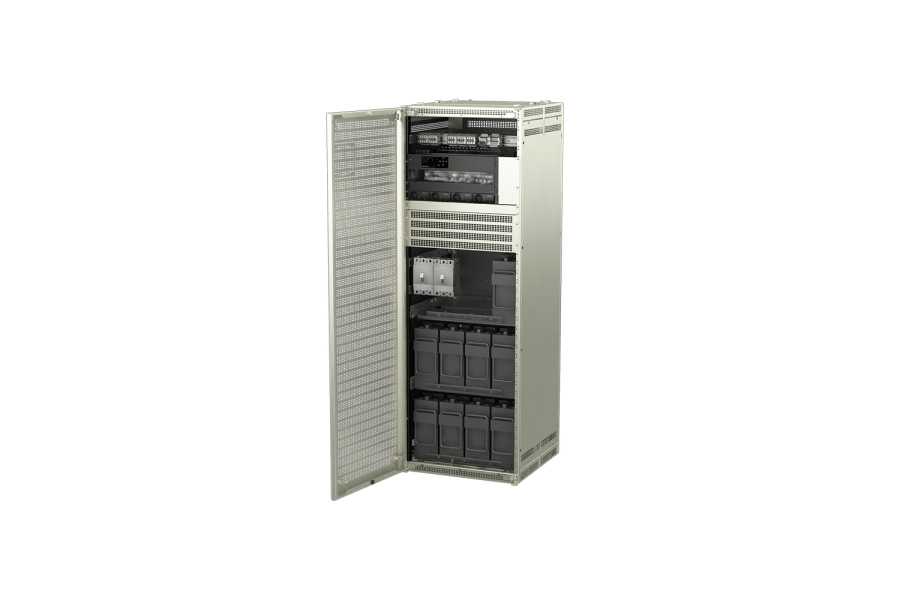

The IBB (Industrial Building Blocks) system is a high-efficiency industrial DC power cabinet for 24 to 220 VDC outputs from 2 to 16 kW. It uses Flatpack2 HE rectifiers, houses up to eight of them with DC distribution and up to 300 A of output, and can be used with or without batteries. Its building-block design makes it flexible across many industrial applications.
Key Features
- 24–220 VDC output, 2–16 kW
- Houses up to 8 hot-pluggable Flatpack2 HE rectifiers
- Up to 300 A DC output with DC distribution
- 85–300 VAC input
- 3.2-inch TFT display
- Ethernet and SNMP with traps
- 6 digital inputs and 6 relay outputs
- IP21 floor cabinet
Technical Specifications
| Input | |
|---|---|
| Max Input AC Voltage | 275 VAC |
| Mains Configuration | 230/400 VAC 3 phase (Y) |
| DC Output | |
| Current (maximum) | 300 ADC |
| Max Voltage | 279 VDC |
| Max Power | 16 kW |
| Others | |
| Operating Temperature | −40 to 45°C |
| Dimensions | |
| Dimensions (W x H x D) | 600 x 2000 x 600 mm [23.62 x 78.74 x 23.62 inch] |
| Mounting Dimensions | Width 23 inch / Height 44U / Depth 600 mm |
| Design Standards | |
| Ingress Protection (IP) | 21 |
Specifications from Delta Electronics (Eltek) and subject to change without notice. Contact KPS for the latest datasheet.
Applications
Power utilities and substations, oil and gas, process industries, switchgear tripping and closing, and emergency systems.
