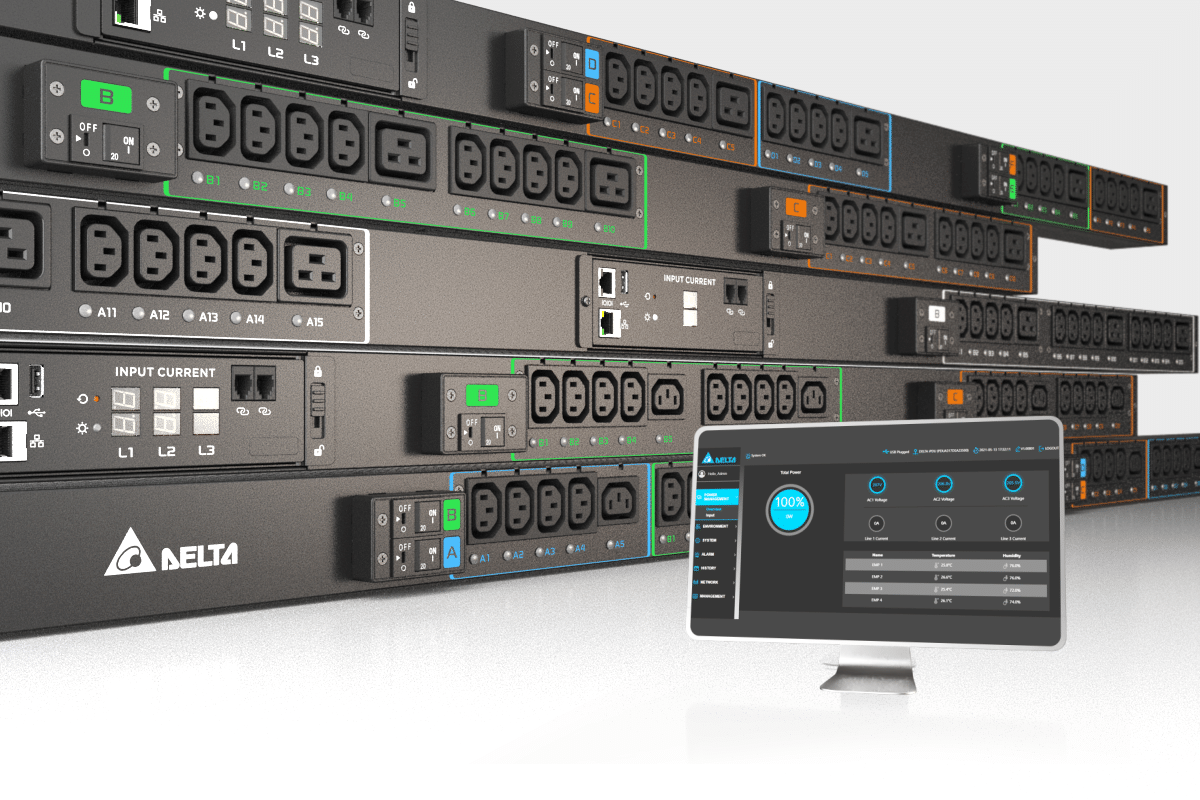

The Delta ViLink series is a range of smart rack PDUs in metered and switched versions. Metered models report billing-grade energy data and branch currents; switched models add remote on/off control of individual outlets, outlet grouping and power-on sequencing to protect IT equipment from inrush current. Up to 40 rPDUs can be daisy-chained on a single IP address.
Key Features
- Metered and switched (smart) versions
- 1% billing-grade accuracy to IEC 62053-21 Class 1
- Remote outlet control, customizable grouping, power-on sequencing and delays (switched models)
- Daisy chain up to 40 rPDUs on one IP address
- Strong cybersecurity and authentication for remote management
- Local display and indicators for on-site monitoring
- Branch circuit breaker protection against overload
- Zero-U vertical or horizontal mounting, side or rear installation
- Operates at full load up to 60 °C for high-density computing
Technical Specifications
| Types | Metered rack PDU, switched rack PDU |
|---|---|
| Metering accuracy | 1% (IEC 62053-21 Class 1) |
| Networking | Daisy chain up to 40 rPDUs per IP address |
| Mounting | Zero-U vertical / horizontal, side or rear |
| Protection | Branch circuit breakers |
| Operating temperature | Up to 60 °C at full load |
Models vary by region (single- or three-phase input, plug and outlet types). Contact KPS for the configuration that matches your racks.
Applications
Data centers, server rooms, colocation and edge sites that need to measure power per rack or outlet, switch equipment remotely and manage capacity.
Common Questions
What is a smart PDU?
A smart PDU is a networked rack PDU that reports power and energy data and, in switched versions, lets you turn individual outlets on and off remotely and sequence power-up.
What is the difference between metered and switched PDUs?
Metered PDUs measure and report power. Switched PDUs also allow remote outlet control.
Related Products and Guides
- Delta ViFlow rack PDU – basic and metered rack PDUs
- Delta data center PDU – 225–950 kVA floor-standing PDU
- Battery backup systems – backup power for your racks
Buy the Delta ViLink smart rack PDU in Egypt
KPS supplies, installs and supports this equipment across Egypt, including system design, integration and commissioning. Request a quote and our engineers will confirm the right configuration for your site.
