KPS supplies EnerSys® PowerSafe® OPzV batteries in Egypt: 2 V tubular gel VRLA cells from 215 Ah to 3170 Ah, engineered for long-duration standby power in telecom, utilities, power generation, oil & gas and UPS systems. KPS handles sizing, supply, installation, commissioning and after-sales support for OPzV battery banks across Egypt.
- Capacity range: 215 Ah to 3170 Ah (C10 to 1.80 Vpc at 20°C)
- 20-year design life at 20°C
- C10 capacities exceed DIN standard values
- Excellent deep discharge recovery and cyclability
- Very low maintenance: no water addition
- Vertical or horizontal installation to save floor space
Key specifications
| Specification | Value |
|---|---|
| Technology | Valve regulated lead-acid (VRLA): gel electrolyte with tubular positive plates |
| Nominal voltage | 2 V single cells |
| Capacity range | 215 Ah to 3170 Ah (10-hour rate to 1.80 Vpc at 20°C) |
| Design life | 20 years at 20°C; classified “Very Long Life” (>12 years) per Eurobat guide 2015 |
| Float charge voltage | 2.25 Vpc at 20°C |
| Storage life | 12 months at 20°C |
| Installation | Vertical or horizontal; optional racking available |
| Safety | Fully insulated connectors, immobilised electrolyte, one-way pressure relief valve with integral flame arrestor; flame-retardant ABS (UL94 V-0) optional |
| Standards | IEC 60896-21/22, DIN 40742, DIN 43539 Part 5, EN 50272-2 / IEC 62485-2 |
Model range
| Model | Capacity C10 (Ah) | L × W × H (mm) | Weight (kg) |
|---|---|---|---|
| 4 OPzV 200 | 215 | 103 × 206 × 403 | 19.5 |
| 5 OPzV 250 | 265 | 124 × 206 × 403 | 23.5 |
| 6 OPzV 300 | 320 | 145 × 206 × 403 | 28.0 |
| 5 OPzV 350 | 385 | 124 × 206 × 520 | 31.0 |
| 6 OPzV 420 | 465 | 145 × 206 × 520 | 36.5 |
| 7 OPzV 490 | 540 | 166 × 206 × 520 | 42.0 |
| 6 OPzV 600 | 705 | 145 × 206 × 695 | 50.0 |
| 8 OPzV 800 | 940 | 210 × 191 × 695 | 68.0 |
| 10 OPzV 1000 | 1170 | 210 × 233 × 695 | 82.0 |
| 12 OPzV 1200 | 1410 | 210 × 275 × 695 | 97.0 |
| 12 OPzV 1500 | 1600 | 210 × 275 × 845 | 120.0 |
| 16 OPzV 2000 | 2110 | 212 × 397 × 820 | 165.0 |
| 20 OPzV 2500 | 2640 | 212 × 487 × 820 | 200.0 |
| 24 OPzV 3000 | 3170 | 212 × 576 × 820 | 240.0 |
All models are 2 V cells. Capacity at 10-hour rate to 1.80 Vpc at 20°C. Height includes connectors and shrouds.
What is an OPzV battery?
OPzV comes from the German Ortsfest PanZerplatte Verschlossen: a stationary, tubular-plate, sealed lead-acid battery. The electrolyte is immobilised as a gel, so OPzV cells need no water addition and have a low ventilation requirement. This makes OPzV batteries a strong fit for remote, unmanned and space-constrained sites where maintenance visits are costly.

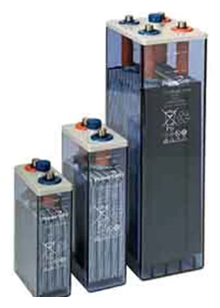

OPzV vs OPzS batteries
| OPzV (PowerSafe® OPzV) | OPzS | |
|---|---|---|
| Construction | Sealed, valve regulated (VRLA), gel electrolyte | Vented (flooded), liquid electrolyte |
| Maintenance | No water addition | Periodic water topping |
| Installation | Vertical or horizontal | Vertical only |
| Ventilation | Low requirement | Higher requirement |
OPzV batteries for Egyptian sites
PowerSafe® OPzV is rated for a 20-year design life at 20°C. As with all lead-acid batteries, higher operating temperatures shorten service life, so battery room conditions matter on Egyptian sites. KPS sizes each OPzV battery bank for the required backup time and advises on rack layout, ventilation and temperature management to protect battery life and uptime.
Applications
- Telecommunications
- Power generation and distribution systems
- Railway, airport and seaport signalling
- Computing and UPS systems
- Emergency lighting
- Automation and measuring systems
بطاريات OPzV في مصر
توفر KPS بطاريات EnerSys PowerSafe OPzV في مصر، وهي بطاريات جل أنبوبية 2 فولت بسعات من 215 إلى 3170 أمبير/ساعة، بعمر تصميمي 20 عامًا عند 20 درجة مئوية ودون الحاجة لإضافة المياه. مناسبة للاتصالات ومحطات توليد وتوزيع الكهرباء وأنظمة UPS. للتسعير والاستشارات الفنية تواصل مع KPS.
FAQs
What are PowerSafe® OPzV batteries used for?
PowerSafe® OPzV batteries provide long-life standby power for telecommunications, power generation and distribution, railway, airport and seaport signalling, computing and UPS, emergency lighting, and automation and measuring systems.
How do I request a quote for PowerSafe® OPzV batteries?
Click the Request a Quote button on this page or message KPS on WhatsApp at +201002009231. Include the system voltage, required capacity (Ah) and backup time you need.
Does KPS support PowerSafe® OPzV installations?
Yes. KPS supplies PowerSafe® OPzV batteries and provides installation, commissioning and after-sales support.
What is the difference between OPzV and OPzS batteries?
OPzV batteries are sealed, valve regulated gel batteries that need no water addition and can be installed vertically or horizontally. OPzS batteries are vented (flooded) and need periodic water topping and more ventilation.
Where can I buy OPzV batteries in Egypt?
KPS supplies EnerSys® PowerSafe® OPzV batteries in Egypt and provides installation, commissioning and after-sales support. Request a quote on this page or message KPS on WhatsApp at +201002009231.
